Standard-gauge Couplers

When modelers get started in S-scale, they inevitably are going to face the issue of upon which coupler to standardize their locomotives and rolling stock. This page will cover couplers that are in use today, and hopefully provides you with some guidance as to which one or ones you would like to use in your own models.

A Note About AF-compatible Couplers

If you use A.C. Gilbert American Flyer equipment, or AF-compatible equipment, and wish to continue to use those, you might also be interested in the A.F. Coupler article. The AF-compatible knuckle couplers are rock-solid on typical American Flyer track and perform well when used at high speeds.

However, if you prefer more to-scale couplers, or run your equipment at moderate, more to-scale speeds, you might be interested in "scale" couplers. These are the S-scale version of the ones that you'll find on N- and HO-scale equipment nowadays. The S-scale equipment produced today will usually have holes pre-drilled under the model ready to accept the screws for an S-scale "scale" coupler. For these types of conversions, this also converts the car from truck-mounted to body-mounted couplers at the same time. Truck-mounted couplers allow for sharper-radius curves, but can easily cause cars to be derailed when pushed. Body-mounted couplers are what the prototype uses, but they require more gentle curves on our model layouts. It will only take a matter of a few minutes to do the conversion on most cars. Locomotives may provide that same feature, but some may require more creative efforts to do this conversion.

Kadee Couplers

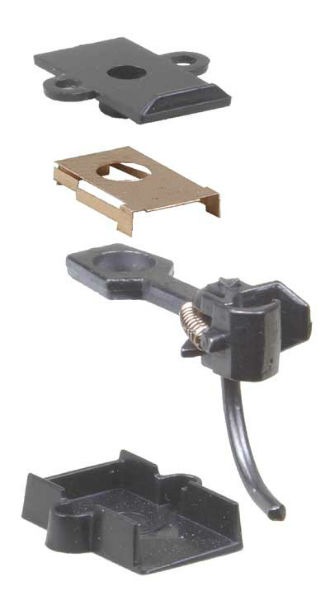

When Kadee® came out with their Magne-Matic® couplers, S-scale modelers looking for that extra bit of realism started using the HO-scale Kadee #5 couplers. The only issue with the #5 coupler is that it is designed for HO-scale, so the metal pin doesn't bend down far enough for it to be used in S-scale with the under-the-track magnet system (see this page for how the Kadee coupler is supposed to work). If you don't use their magnet-based remote-uncoupling feature, some modelers have clipped-off the pin, and installed S-scale brake hose detailing parts instead.

Kadee did eventually produce an S-scale version, the Kadee 802 coupler which subsequently became a standard within the "scale" community of S. Their #808 coupler is identical except it is molded in brown plastic. They are ever so slightly oversized when compared to a prototype coupler. Some claim that they are just re-labeled On3/On30 couplers, but there is no proof of that, and Kadee has denied that.

The #5 and #802/808 couplers mate with each other, so it is possible to have a mix of these couplers in your trains.

If you run long, heavy (especially all-brass) trains, you might want to prefer the #802/808 couplers over the #5. But, for shorter trains, the #5 is plenty strong enough.

Three of the holes in the draft gear box found on these couplers usually match up with the pre-drilled holes on a lot of modern S-scale cars and some engines. The 802/808 offers a fourth hole for extra compatibility and security.

#802

#808

S-Helper Service/MTH Couplers

MTH coupler

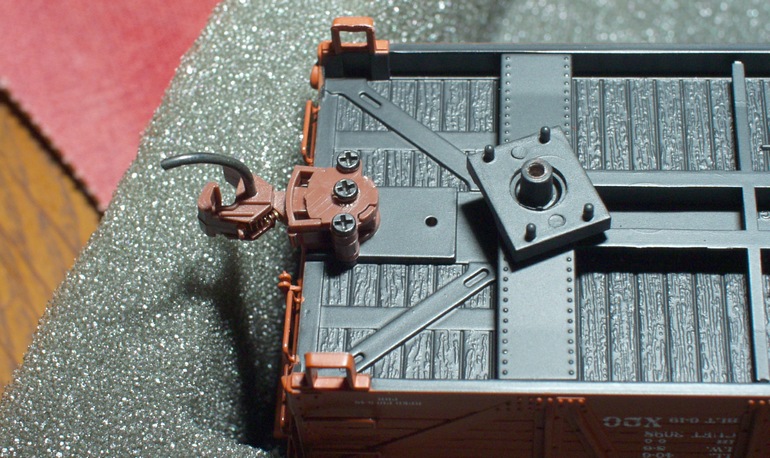

S-Helper Service came out with their own version of the coupler (part #01295), which mates perfectly with the Kadee #802/808 coupler (and thus with the #5). The S-Helper Service coupler has a slightly smaller knuckle (closer to scale), doesn't have as much slack as do the Kadees, and has a slightly smaller draft gear box, making it easier to install on some of their cars.

By the way, "slack" is the term used for the amount you can move one car left or right without the coupled car next to it moving. In the real railroads this is used to avoid tearing the couplers apart when a train is started. In the model world, this is less of an issue. What is more important in the modeling world is that you can insert some sort of uncoupling device. If the couplers are really tight together, the cars cannot be uncoupled, short of lifting one of them off the track. However, too much slack in the models causes a yo-yo effect when the cars are pulled in a train. The latter does not show in the real railroads, so modelers sometimes want to prevent that from happening on their layouts. A coupler with less slack will provide that (other alternatives are making all the cars heavier, or putting some sort of artificial resistance in the smooth rolling wheels; neither of these options are appealing, but could be considered).

The three holes found on the S-Helper Service couplers match the three holes in the Kadee coupler's draft gear box, which will match the holes pre-drilled under most cars and engines.

S-Helper Service had to shut down in 2010 due to factory problems in China. Later that same year, MTH announced that they bought the tooling from S-Helper Service. Subsequently, MTH produced these same couplers. In 2020, MTH announced their closure due to the retirement of the company's owner. In 2021 ScaleTrains announces that they bought out the S-scale tooling from MTH. ScaleTrains is very likely to continue to make this coupler available. In the meantime, SHS and MTH couplers can still be found on dealer shelves and on the secondary market.

Walthers Proto Max Couplers

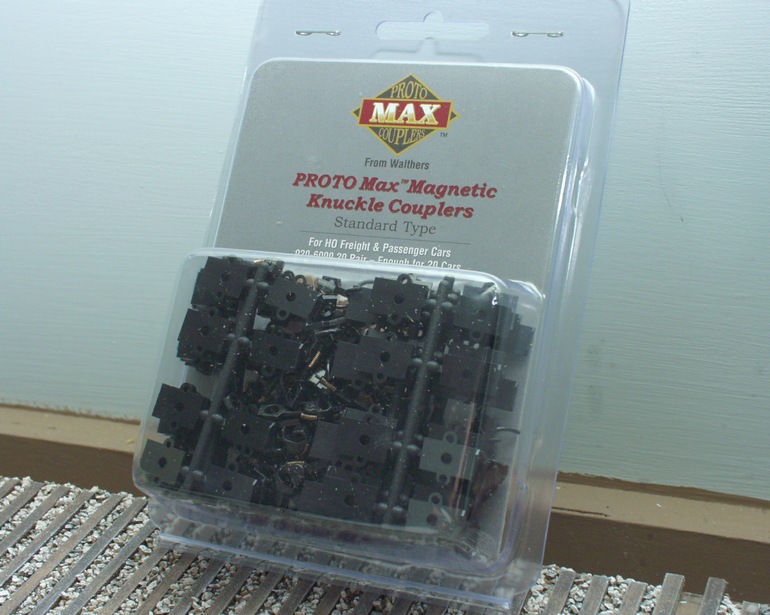

If you are on a budget, Proto Max couplers by Walthers (product ID 920-6002), shown below in the 20-pair package, are HO-scale couplers. They are oversized couplers for HO-scale, so that makes them a good match to S-scale. Please note that Walthers now no longer includes the draft gear boxes with their ProtoMax couplers. The Kadee stand-alone draft gear boxes #232, #233, #234, or #242 are possible candidates.

They are a good alternative if you don't like the larger Kadee 802/808 couplers, or the smaller Kadee #5, which are both S-scale's most popular couplers. The ProtoMax coupler requires assembly, but it is easy enough to do. However, do note that only the center hole of the draft gear box lines up with the pre-drilled holes in the bottom of most S-scale cars, so some custom installation may be necessary (your webmaster uses these and places a tiny drop of superglue at the back of the draft gear box and the car's underframe, which holds it securely in place, but yet can be removed in the future if the need arises). They have less slack in them than do the Kadee couplers.

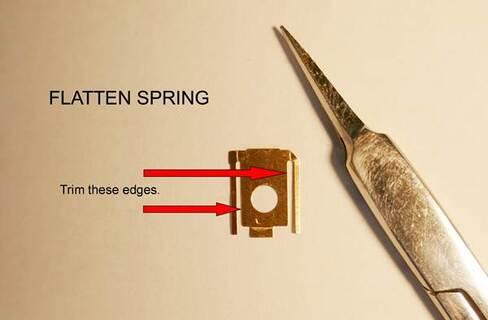

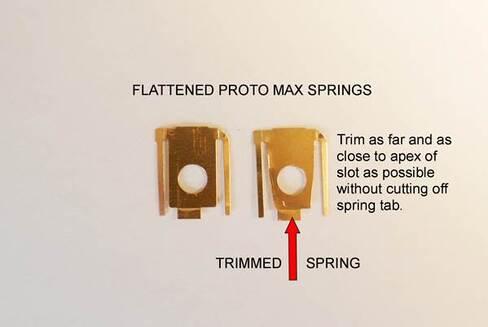

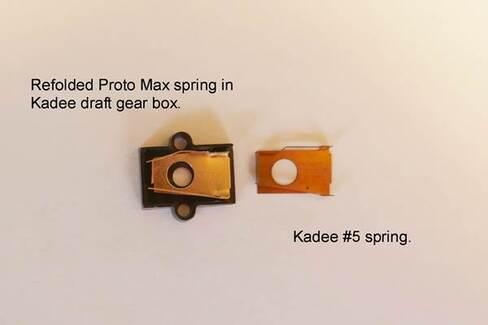

To make the Walthers ProtoMax couplers fit the gear box that comes with the Kadee #5 coupler, S-scale modeler Woody Mitchell came up with a method of making the Walthers spring fit. The photos on the right are the ones that Woody shared describing how he modifies the Proto Max' spring to fit within the skinnier Kadee draft gear box.

Woody has discovered that the Kadee #242 Universal Black Box is a good fit for the Proto Max couplers. A small sliver of the spring extends past the box lip. It is a simple matter to trim before installation and/or paint the spring lip to disguise it.

Sergent Couplers

The ultimate true-to-scale coupler were those produced by Sergent Engineering. These were an exact 1/64th reproduction of the real thing. These "EC64K" couplers are no longer available for sale. The owner of Sergent Engineering, Frank Sergent, has put the design of the coupler into public domain for anyone to use.

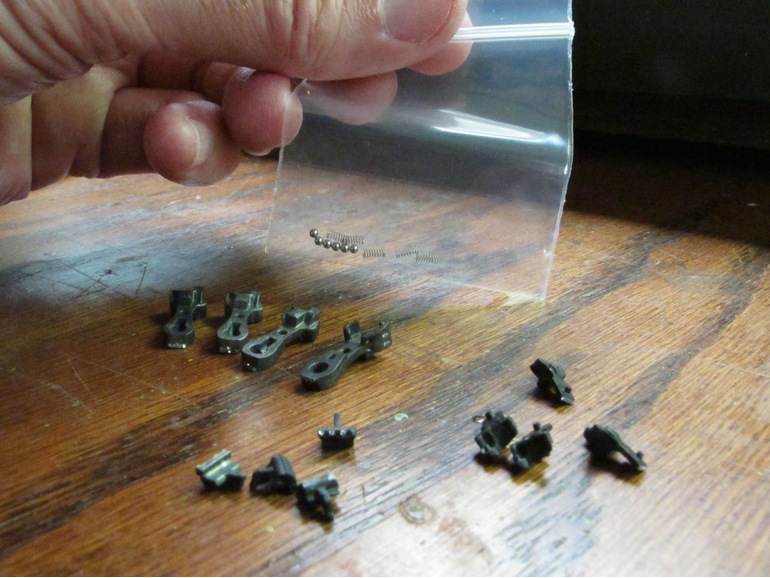

As shown in the photo below, some assembly is required. It is not difficult to do, but does require a bit of patience. Take a look at this web site's webmaster's personal web site for detailed steps on how to assemble these.

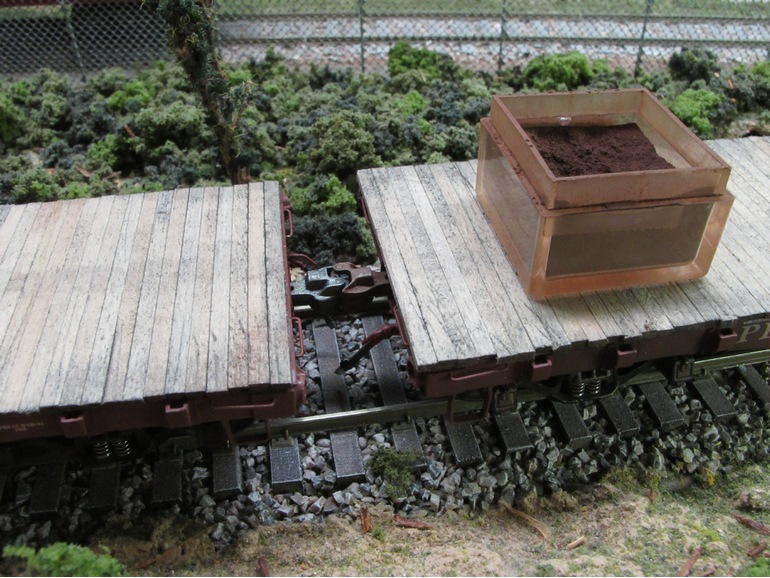

The knuckle opens when you hold a special magnet above the coupler (which pulls up a metal ball inside the coupler, releasing the knuckle). When cars couple, the ball falls back down, and locks the coupler. The advantages are that accidental uncouplings are nearly impossible, they can be coupled on a curve, have no slack to them, and they lead to true-to-prototype operations. The disadvantage of these couplers are their cost, the fact that assembly is required, they don't self-center, they don't couple with any of the other couplers mentioned above, and operations can be tedious, especially if access to the coupler space is restricted. They don't come with a draft gear box, but they fit perfectly into those of the Kadee 802 (separately available from Kadee if asked). The photo below shows two scratchbuilt flat cars with the Sergent couplers installed. The one on the right has been weathered with the Bragdon Enterprises weathering powders shown in the photo. The powder didn't affect the operation of the coupler, and gave it that fantastic realistic look (in the real world couplers aren't allowed to be painted so that cracks and other potential defects can be quickly spotted; this means that they tend to rust).

If you build models to enter into contests, these couplers may just give you that extra edge. Currently, they are only available on the secondary market.

Inventive Models Couplers

In late-2022, an unknown company based in mainland China, called Inventive Models, appeared on the scene, showing both HO- and S-scale versions of the Frank Sergent couplers in brass. S-scale modeler John Degnan, made contact with the owner and he was able to obtain several samples of the S-scale version. John concluded that the couplers were as good, if not better, than the Sergent Engineering coupler, and so volunteered to organize a large order for us S-scale modelers. Many modelers placed orders with John, and he was eventually able to get Inventive Models to produced 1,300 pair of these brass S-scale couplers in mid-2023.

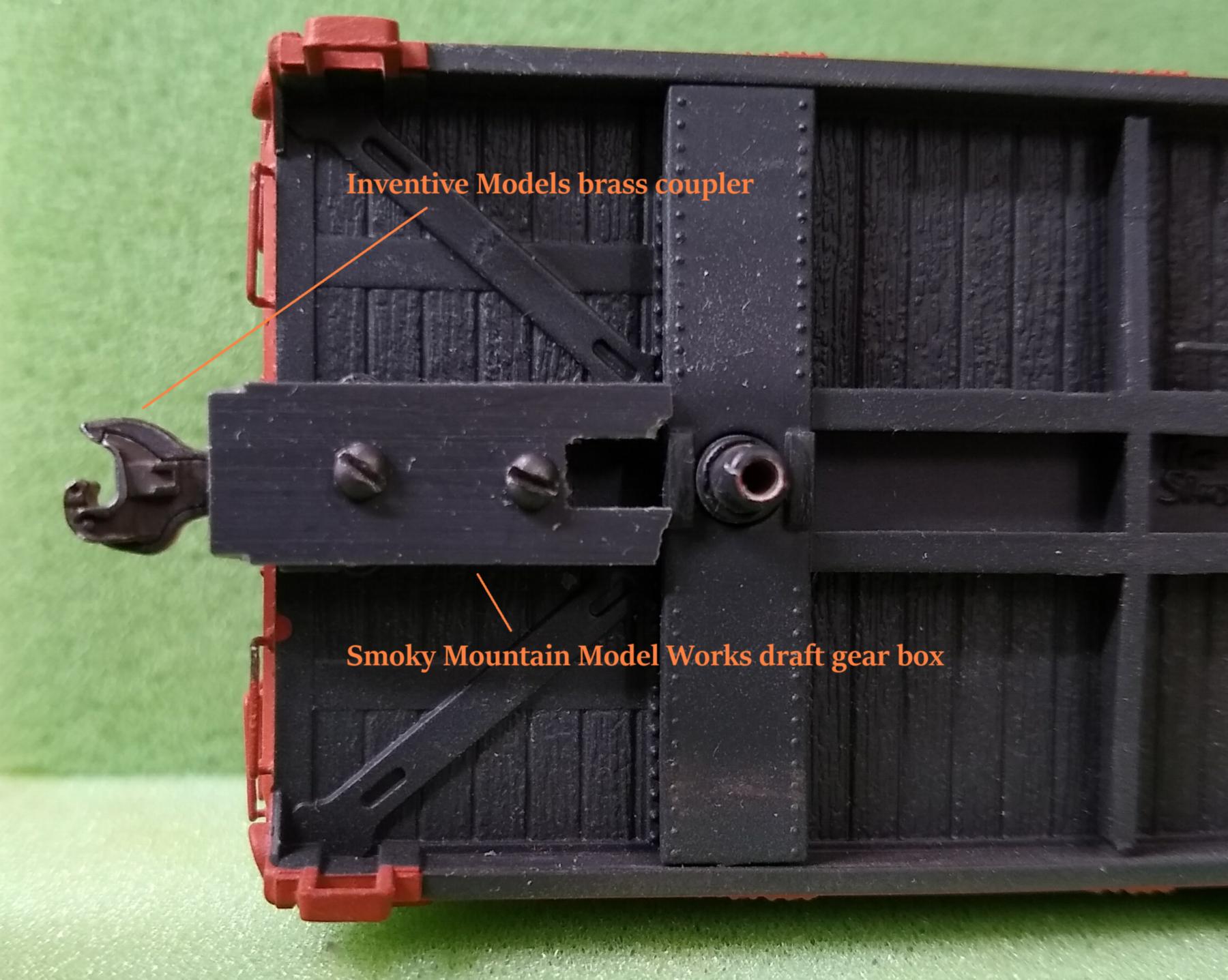

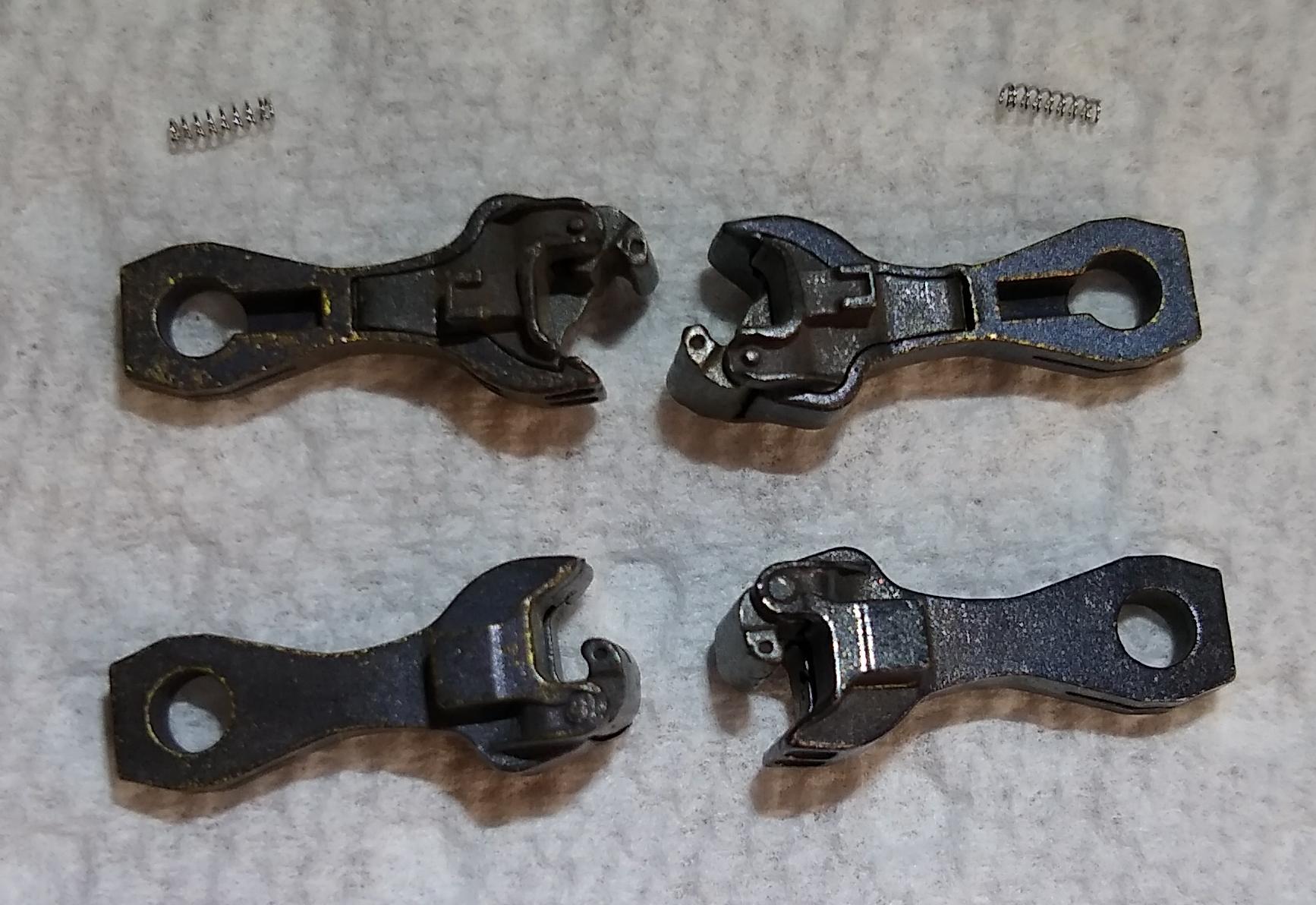

They are available in bare brass or blackened. One big advantage over the Sergent coupler is that these come fully assembled. But like the Sergent coupler, there is no draft gear box. This photo shows the coupler installed on an S-Helper Service box car. The draft gear box is made by Smoky Mountain Model Works specifically for this coupler. It comes with a spring which allows the modeler to choose to center the coupler (don't install the spring to make the coupler work like the prototype). The two screw holes in the gear box match up perfectly with the factory holes in the SHS box car. Much like the Sergent couplers, this coupler does not natively couple to any of the above-mentioned other couplers, so you would have to convert your entire fleet, or make a conversion car (i.e. one with one coupler on one end and a different one on the other).

Otherwise, the coupler works just like the Sergent ones, in that you wave a magnet over the coupler to unlock the coupler head. When the couplers mate, the head automatically closes and locks the coupler.
