Crossing Track Components for Code 172 by A.C. Gilbert

Manufacturer:

A.C. Gilbert

Product Type:

crossing

Manufacturer ID:

725

Introduced:

1946

Gauge:

AF

Rail Height:

code 172

Rail Material:

nickel-silver

Angle:

90-degree

Ties:

metal

Roadbed:

plastic

Online Article:

Has Additional Photos

Notes:

This item was produced from 1946 through 1956, in two variations. The rarest variation, which was produced in 1946, has brass strips in the wheel channels of the crossover plate; a feature that was discontinued in 1947. The brass strips were originally thought to correct loss of tender wheel contact while crossing the diamond. However, it did not work well after the contacts got dirty. The common variation was made from 1947 through 1956. In addition, the 1946 model has blackened rails, which did not appear on a #725 after 1946. Starting in 1957 the part number was changed to 26745, which can only be differentiated from a 725 by the number on the original box. There is one difference in the crossing that the Greenberg and Doyle books have failed to mention, and that is that some of the early units have wires that connect the track sections while other have metal strips.

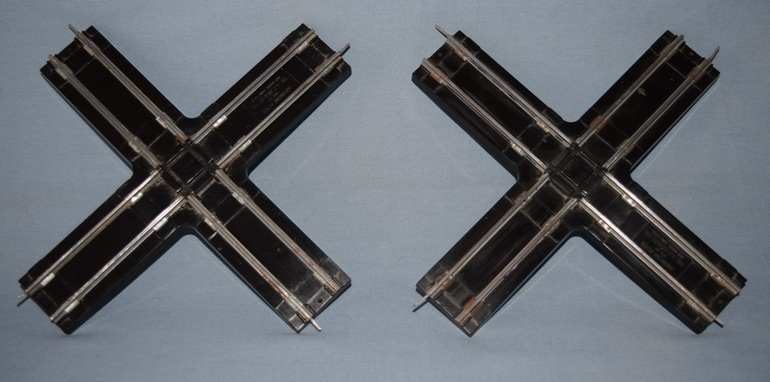

The 1946 variation.

This was the most common variation.

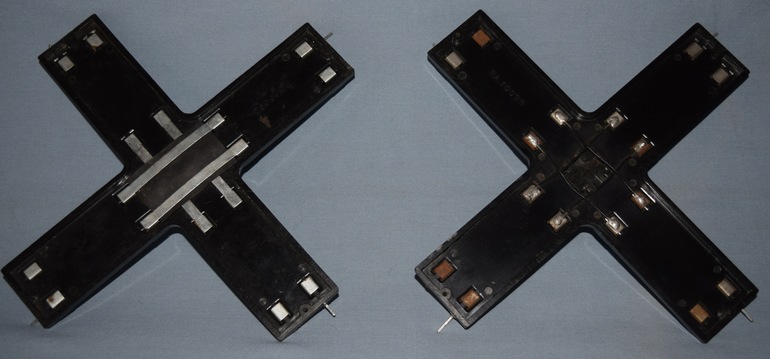

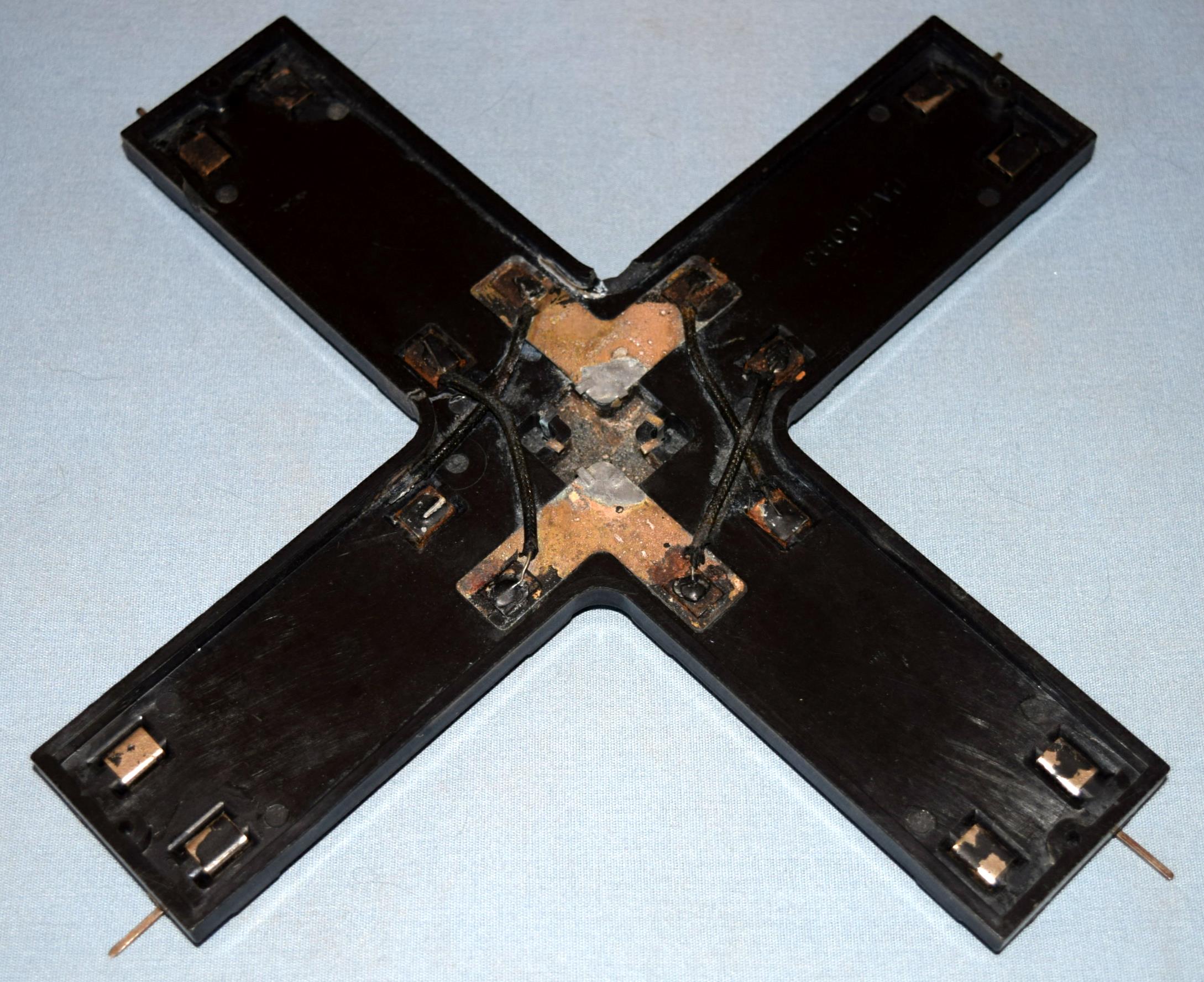

The two differences on how the connections were made under the crossing.

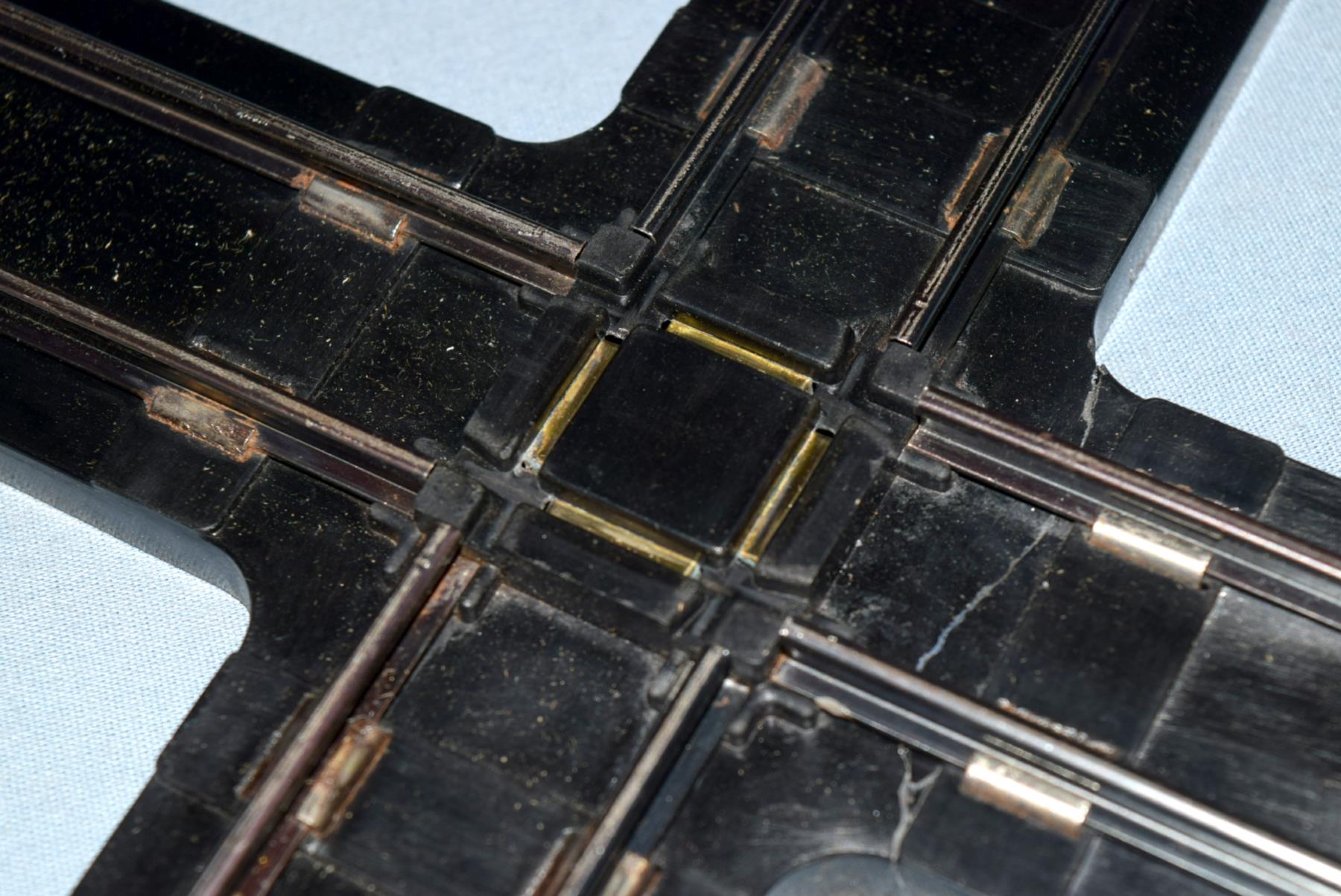

The rarest version from 1946, showing the blackened rails.

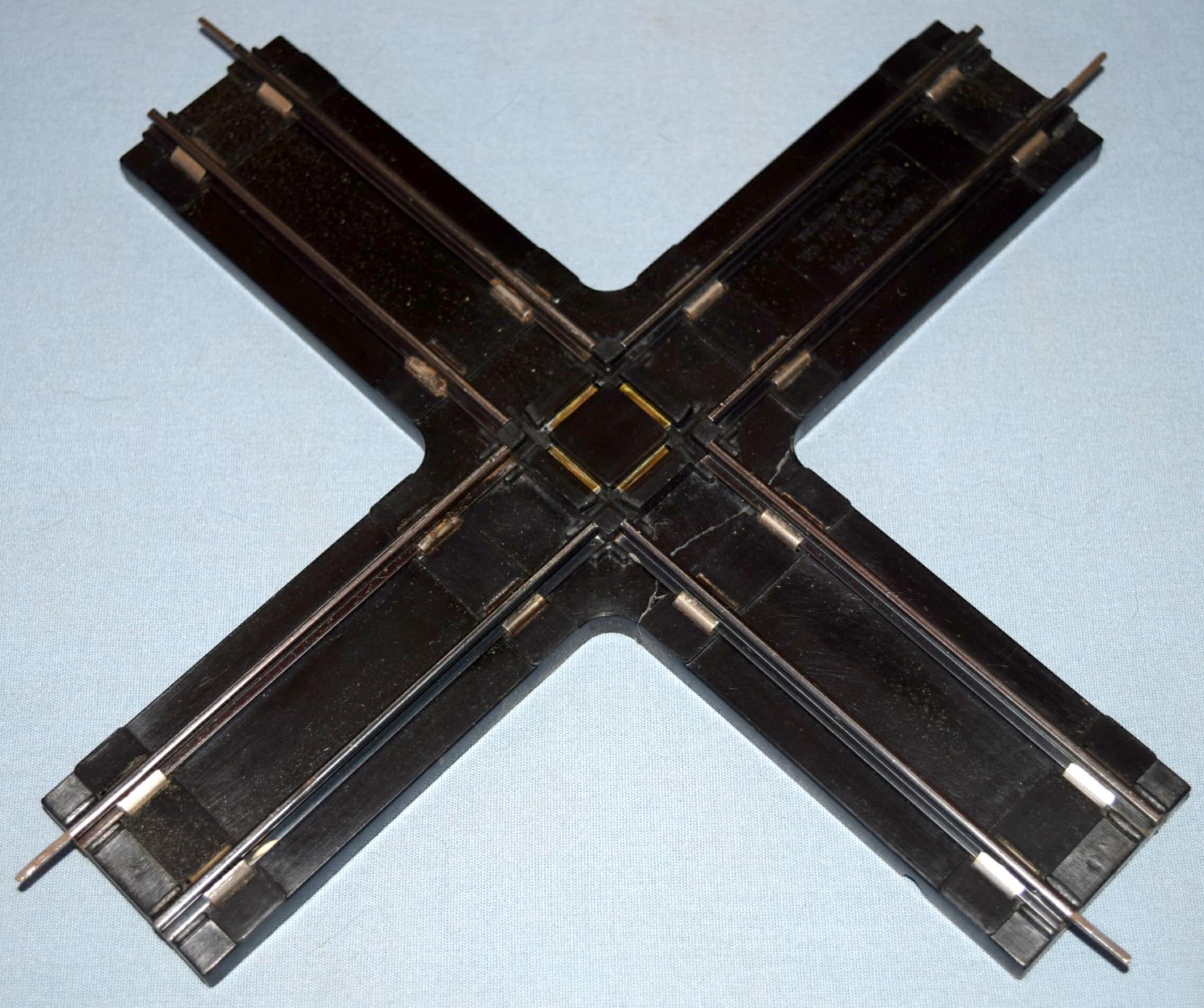

The rarest version from 1946.

Manufacturer:

A.C. Gilbert

Product Type:

crossing

Manufacturer ID:

26322

Introduced:

1961

Gauge:

AF

Rail Height:

code 172

Rail Material:

metal

Angle:

90-degree

Ties:

plastic

Other Material:

plastic

Notes:

This product was produced from 1961 through 1964 and it compatible with the Pike-Master track system.

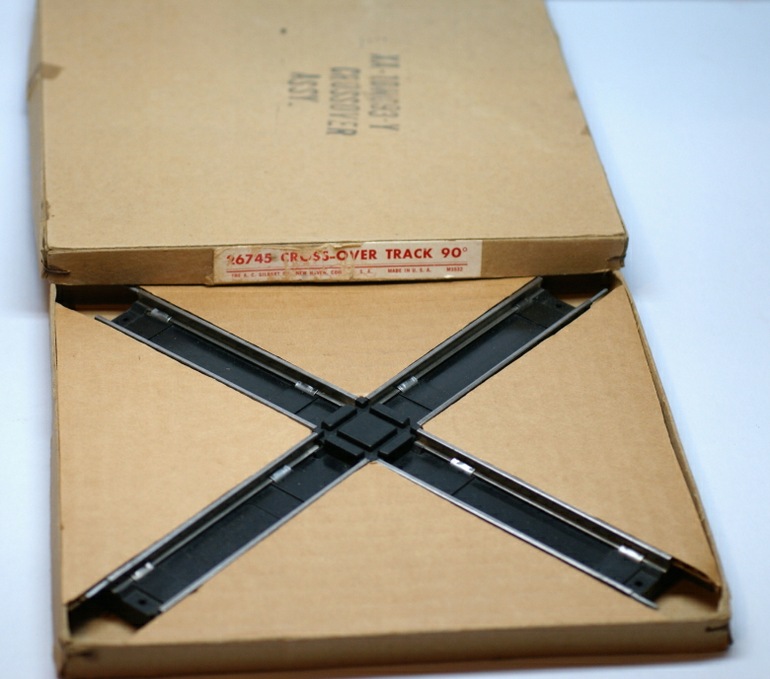

Manufacturer:

A.C. Gilbert

Product Type:

crossing

Manufacturer ID:

26745

Introduced:

1957

Gauge:

AF

Rail Height:

code 172

Rail Material:

metal

Angle:

90-degree

Length:

10"

Ties:

plastic

Other Material:

plastic

Notes:

This product was produced from 1957 through 1964.
