Turntables by Kitwood Hill Models

Kitwood Hill Models (click for web site)

KHT-Sn3-gallows

2024

Sn3

56 feet

wood

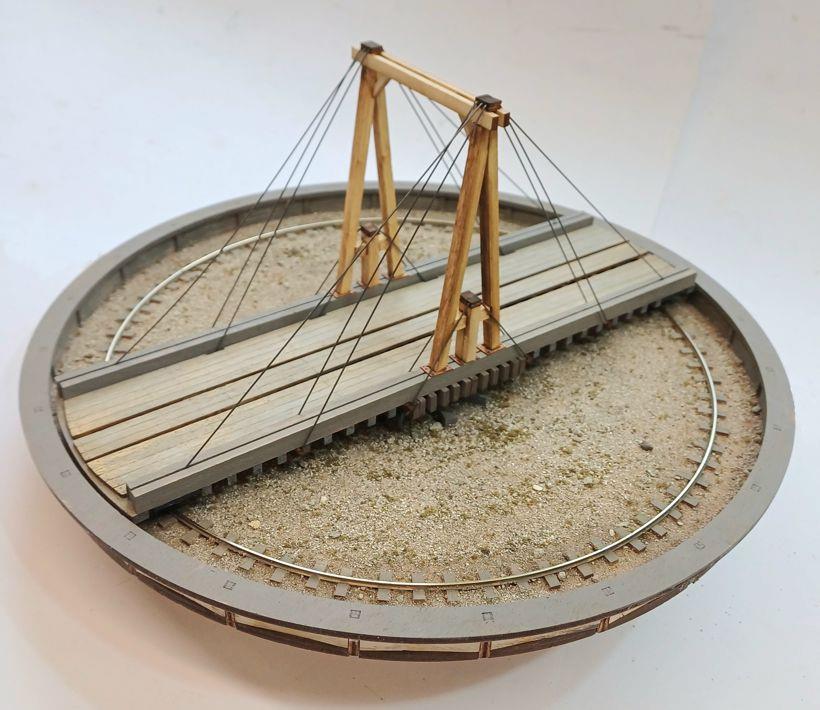

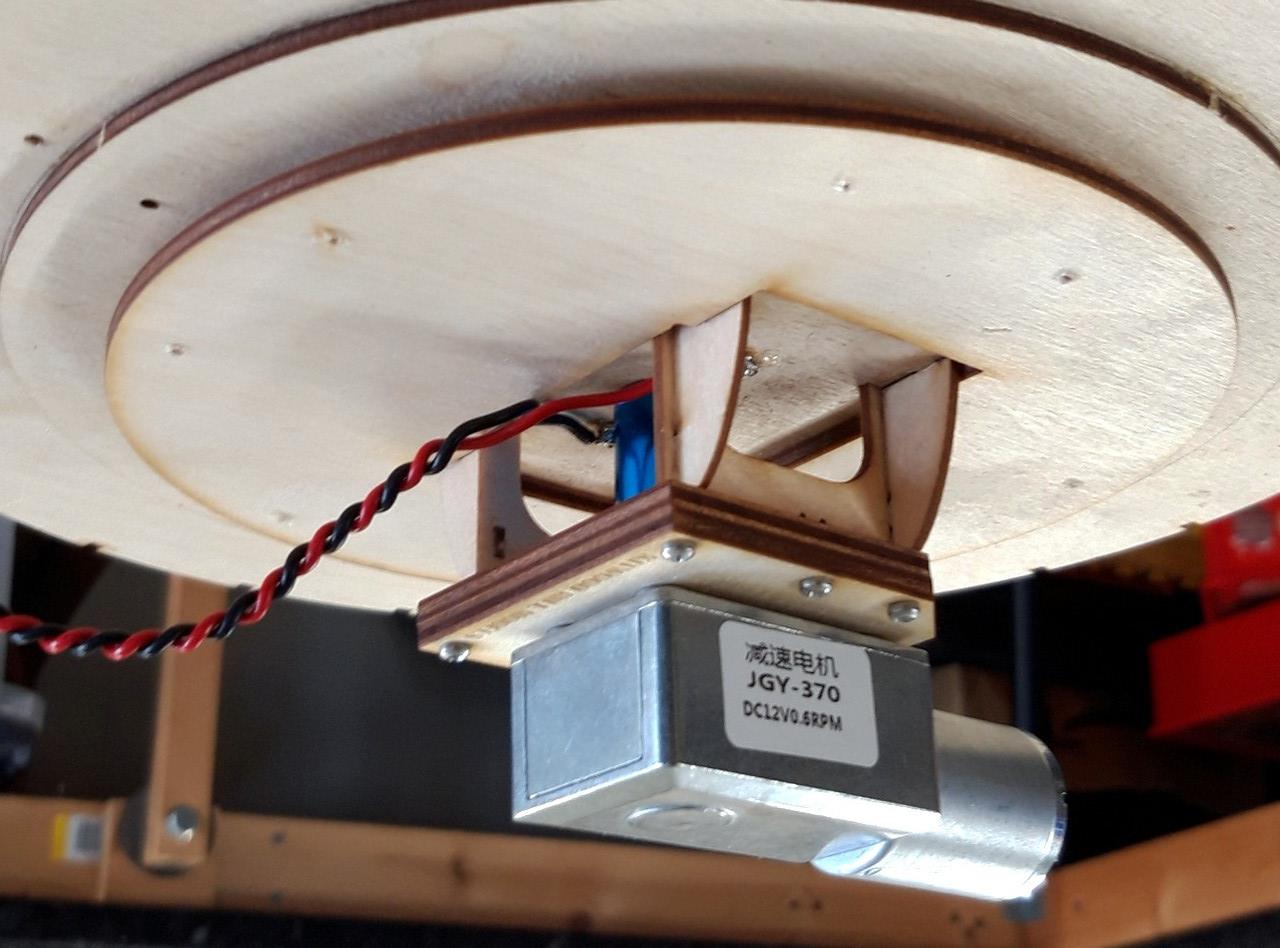

This A-frame Gallows turntable is based on the one found in Laws, California. The motor is not included, but the turntable is designed to take a GW370 style 0.6RPM motor-and-gearbox, which is available on eBay. The necessary motor mount, screws, and shaft coupler are included with the kit. A 12-volt PWM controller or DCC decoder can be used to control the motor and achieve very slow movement. Polarity-switching is discussed in the instruction manual.

Kitwood Hill Models (click for web site)

KHT-Sn3

2022

Sn3

65 feet

wood

This A-frame Durango turntable is based on the one found in Laws, California. The motor is not included, but the turntable is designed to take a GW370 style 0.6 RPM motor-and-gearbox, which is available on eBay. The necessary motor mount, screws, and shaft coupler are included with the kit. A 12-volt PWM controller or DCC decoder can be used to control the motor and achieve very slow movement. Polarity-switching is discussed in the instruction manual.
