Transformer Electronics by A.C. Gilbert
Manufacturer:
A.C. Gilbert
Product Type:
transformer
Manufacturer ID:
1
Introduced:
1950
Electronics:
25W AC
Online Article:
Manufacturer:
A.C. Gilbert
Product Type:
transformer
Manufacturer ID:
1-1/2
Introduced:
1953
Electronics:
45W AC
Online Article:
Manufacturer:
A.C. Gilbert
Product Type:
transformer
Manufacturer ID:
1-1/2B
Introduced:
1956
Electronics:
50W AC
Online Article:
Notes:

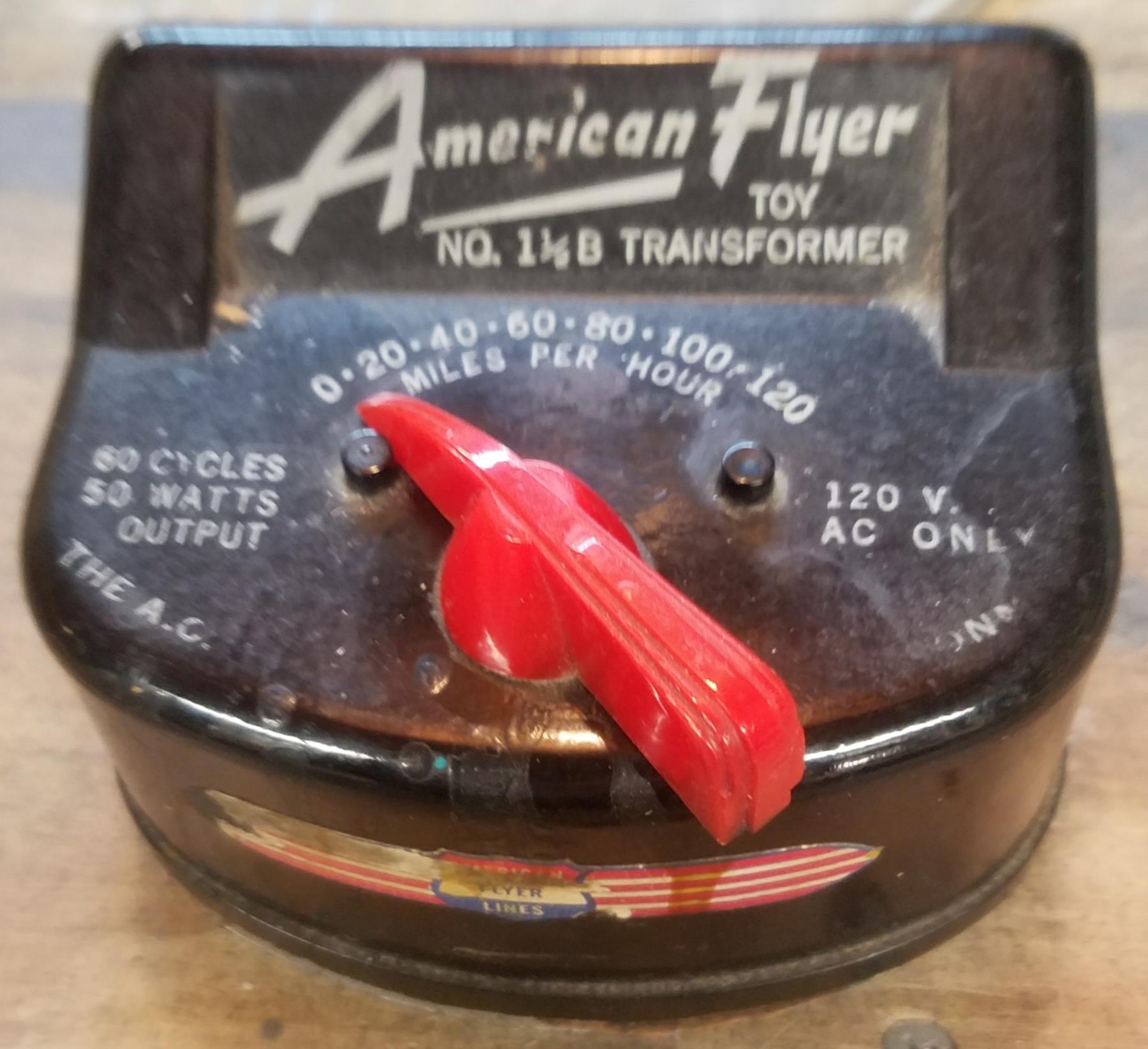

Has built-in circuit breaker.
(image copyright © Terry Sprankle; used by permission)
(image copyright © Terry Sprankle; used by permission)
Manufacturer:
A.C. Gilbert
Product Type:
transformer
Manufacturer ID:
1A
Introduced:
1957
Electronics:
40W AC
Online Article:
Manufacturer:
A.C. Gilbert
Product Type:
transformer
Manufacturer ID:

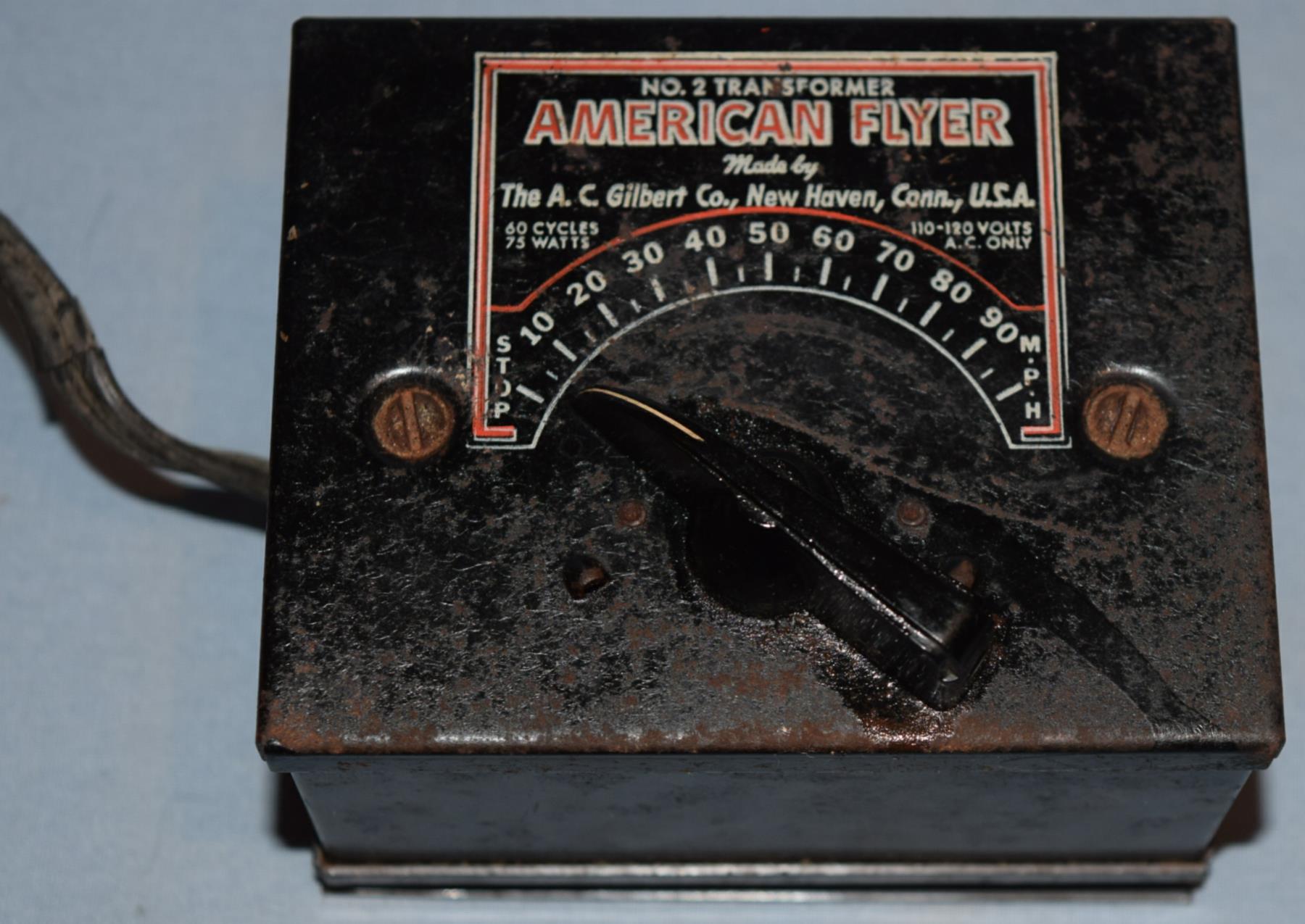

2
Introduced:
1947
Electronics:
75W AC
Online Article:
Notes:
Sold through 1953.
(image copyright © Ted Hamler; used by permission)
Manufacturer:
A.C. Gilbert
Product Type:
transformer
Manufacturer ID:
2B
Introduced:
1948
Electronics:
75W AC
Online Article:
Notes:
Has circuit breaker built-in.
Manufacturer:
A.C. Gilbert
Product Type:
transformer
Manufacturer ID:
3
Introduced:
1946
Electronics:
60W AC
Online Article:
Manufacturer:
A.C. Gilbert
Product Type:
transformer
Manufacturer ID:
4B
Introduced:
1949
Electronics:
100W AC
Online Article:
Notes:
With circuit breaker built-in.
Manufacturer:
A.C. Gilbert
Product Type:
transformer
Manufacturer ID:
5
Introduced:
1946
Electronics:
50W AC
Online Article:
Manufacturer:
A.C. Gilbert
Product Type:
transformer
Manufacturer ID:
5B
Introduced:
1946
Electronics:
50W AC
Notes:
With circuit breaker built-in.
Manufacturer:
A.C. Gilbert
Product Type:
transformer
Manufacturer ID:
6
Introduced:
1946
Electronics:
75W AC
Online Article:
Manufacturer:
A.C. Gilbert
Product Type:
transformer
Manufacturer ID:
7
Introduced:
1946
Electronics:
75W AC
Online Article:
Manufacturer:
A.C. Gilbert
Product Type:
transformer
Manufacturer ID:
7B
Introduced:
1946
Electronics:
75W AC
Online Article:
Notes:
With circuit breaker built-in.
Manufacturer:
A.C. Gilbert
Product Type:
transformer
Manufacturer ID:
8B
Introduced:
1946
Electronics:
100W AC
Online Article:
Notes:

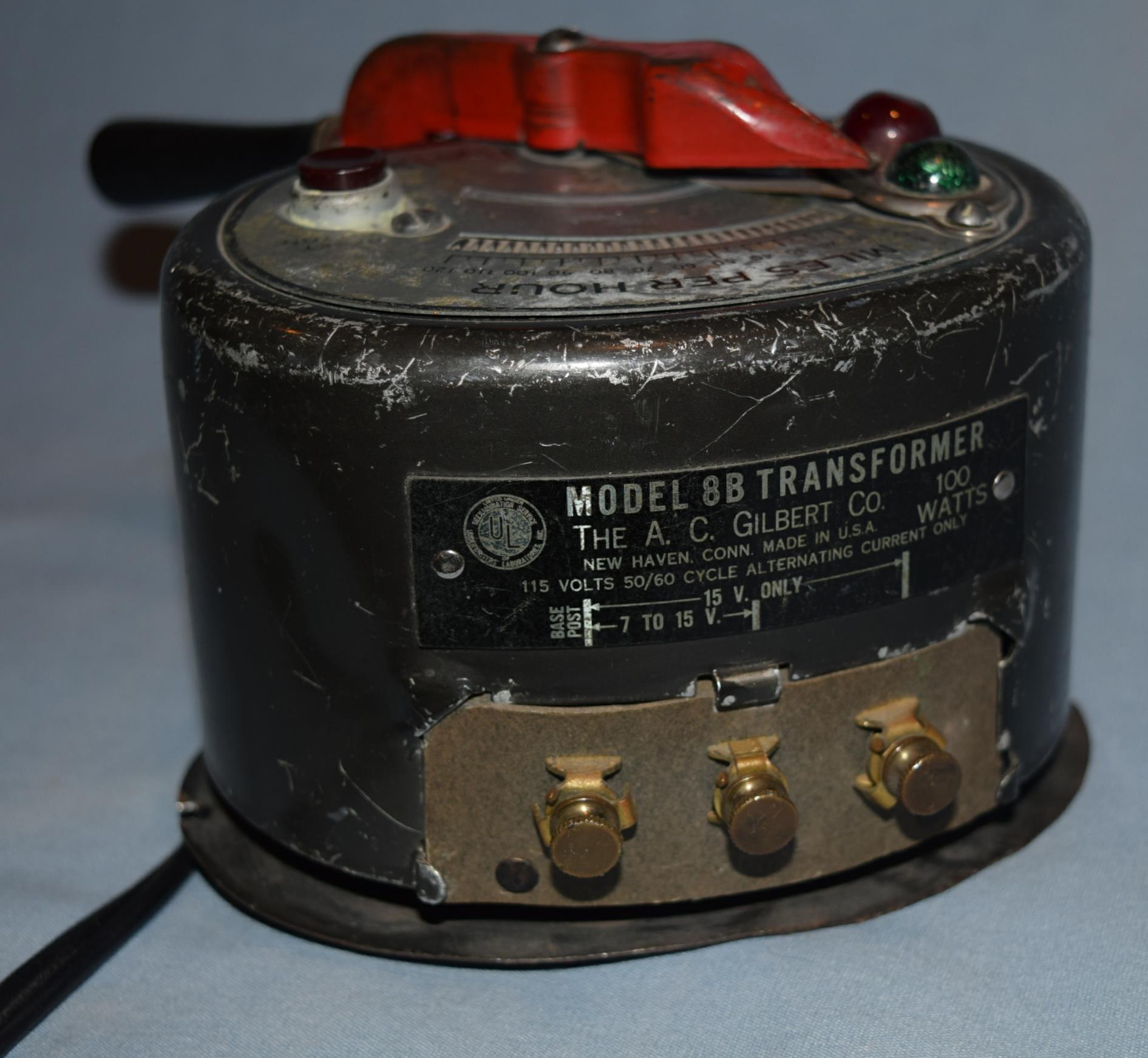

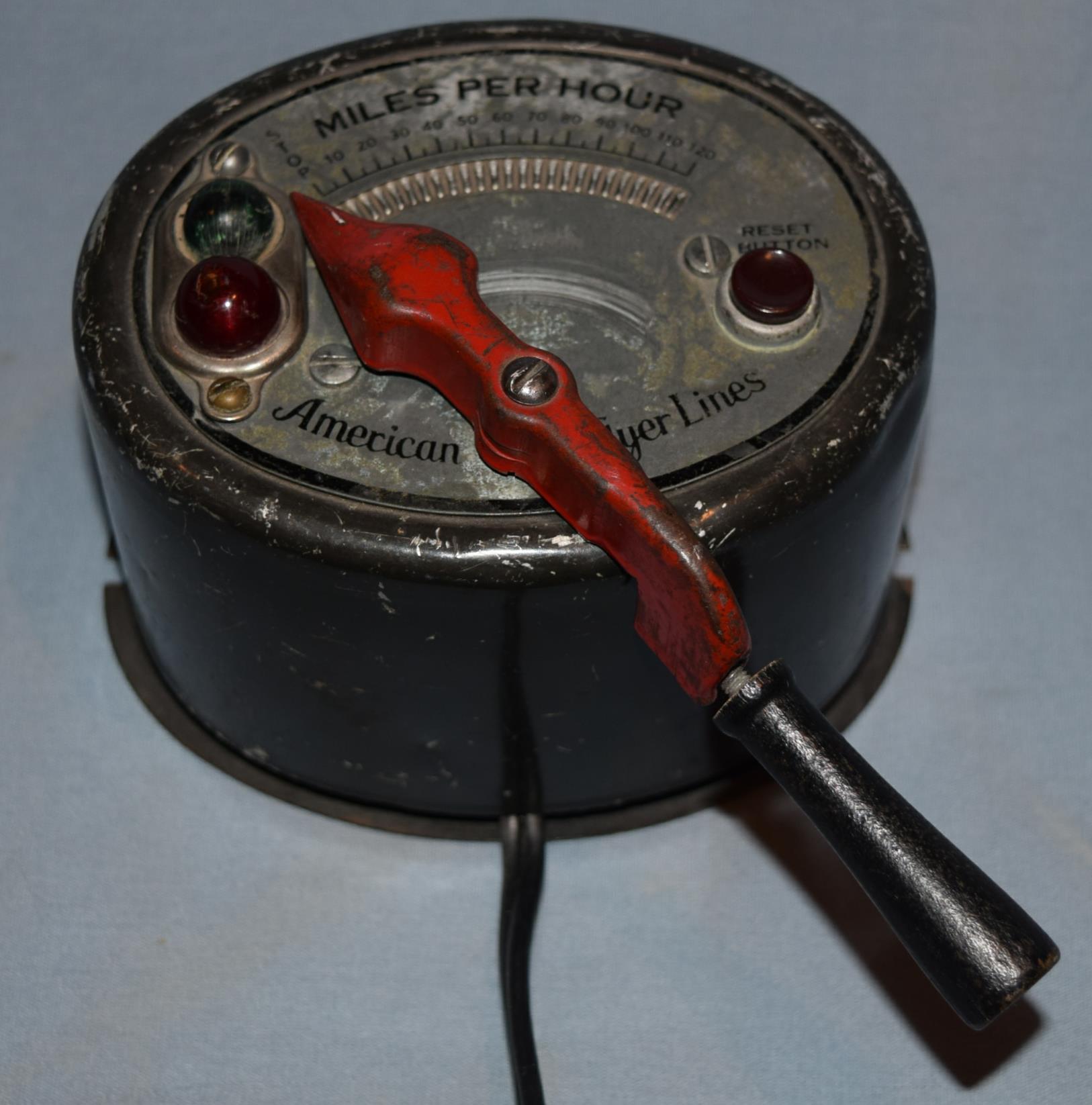

This model was sold through 1952. Has a circuit breaker built-in. Output is variable from 7V to 15V and second output provides a constant 15V.
(image copyright © Ted Hamler; used by permission)
(image copyright © Ted Hamler; used by permission)
Manufacturer:
A.C. Gilbert
Product Type:
transformer
Manufacturer ID:
9B
Introduced:
1946
Electronics:
150W AC
Online Article:
Notes:
With circuit breaker built-in.
Manufacturer:
A.C. Gilbert
Product Type:
transformer
Manufacturer ID:

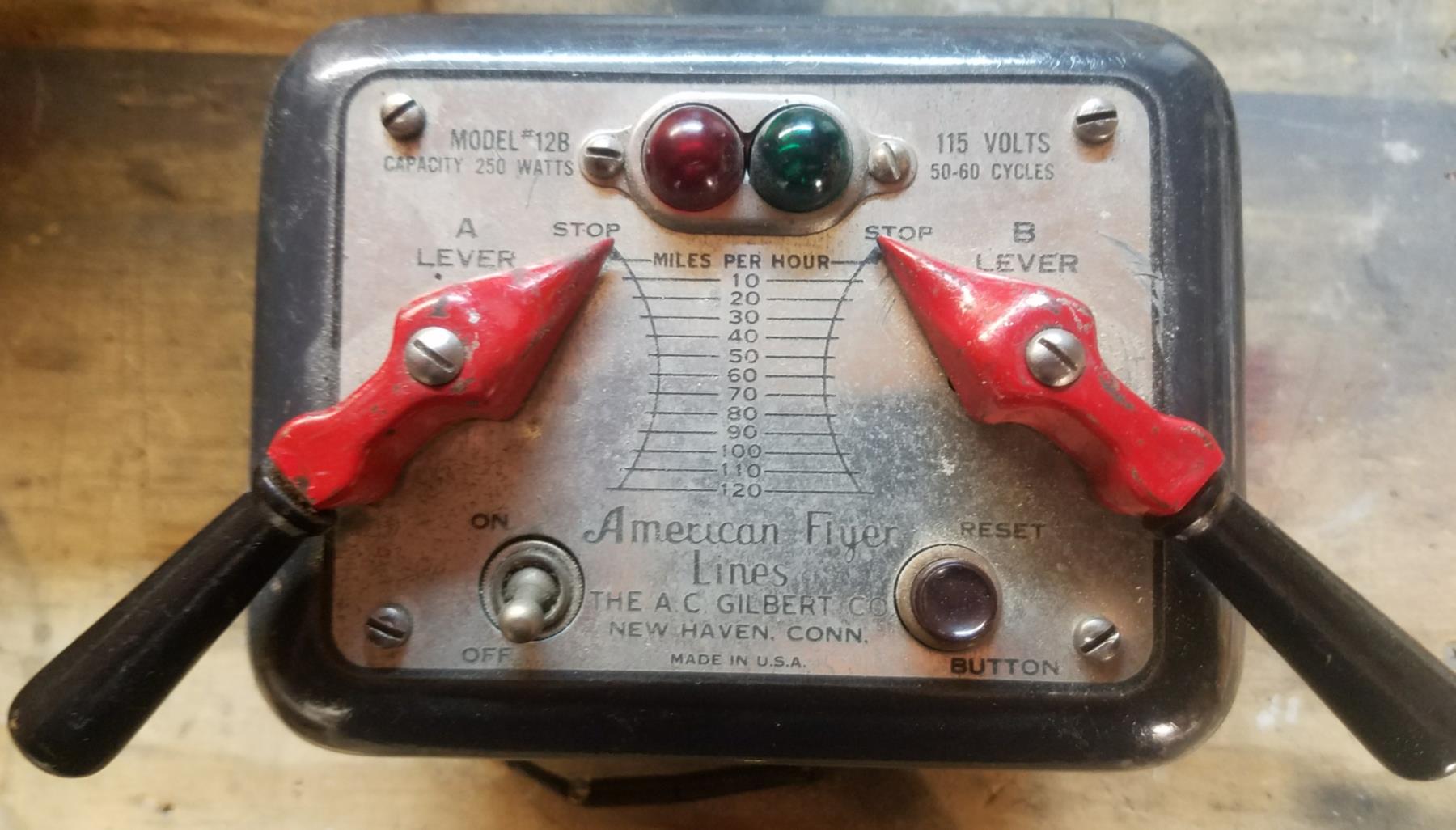

12B
Introduced:
1946
Electronics:
250W AC
Online Article:
Notes:

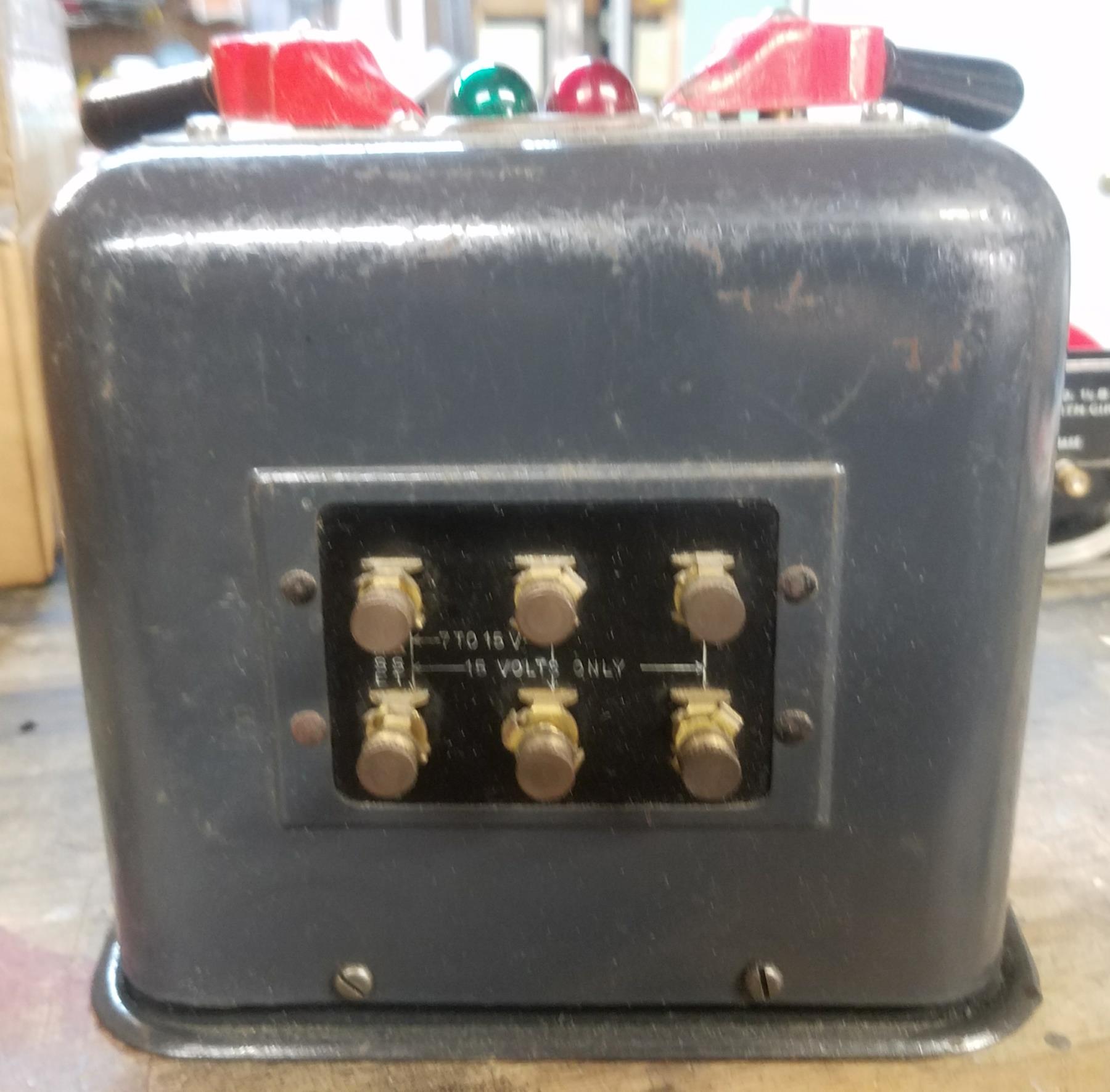

Has built-in circuit breaker. Dual-throttle.
(image copyright © Terry Sprankle; used by permission)
(image copyright © Terry Sprankle; used by permission)
Manufacturer:
A.C. Gilbert
Product Type:
transformer
Manufacturer ID:
14
Introduced:
1947
Electronics:
150W AC
Notes:
Rectifier with two circuit breakers built-in.
Manufacturer:
A.C. Gilbert
Product Type:
transformer
Manufacturer ID:
15B
Introduced:
1953
Electronics:
110W AC
Online Article:
Notes:
Single-throttle. With circuit breaker built-in.
Manufacturer:
A.C. Gilbert
Product Type:
transformer
Manufacturer ID:
16
Introduced:
1950
Electronics:
150W DC
Notes:

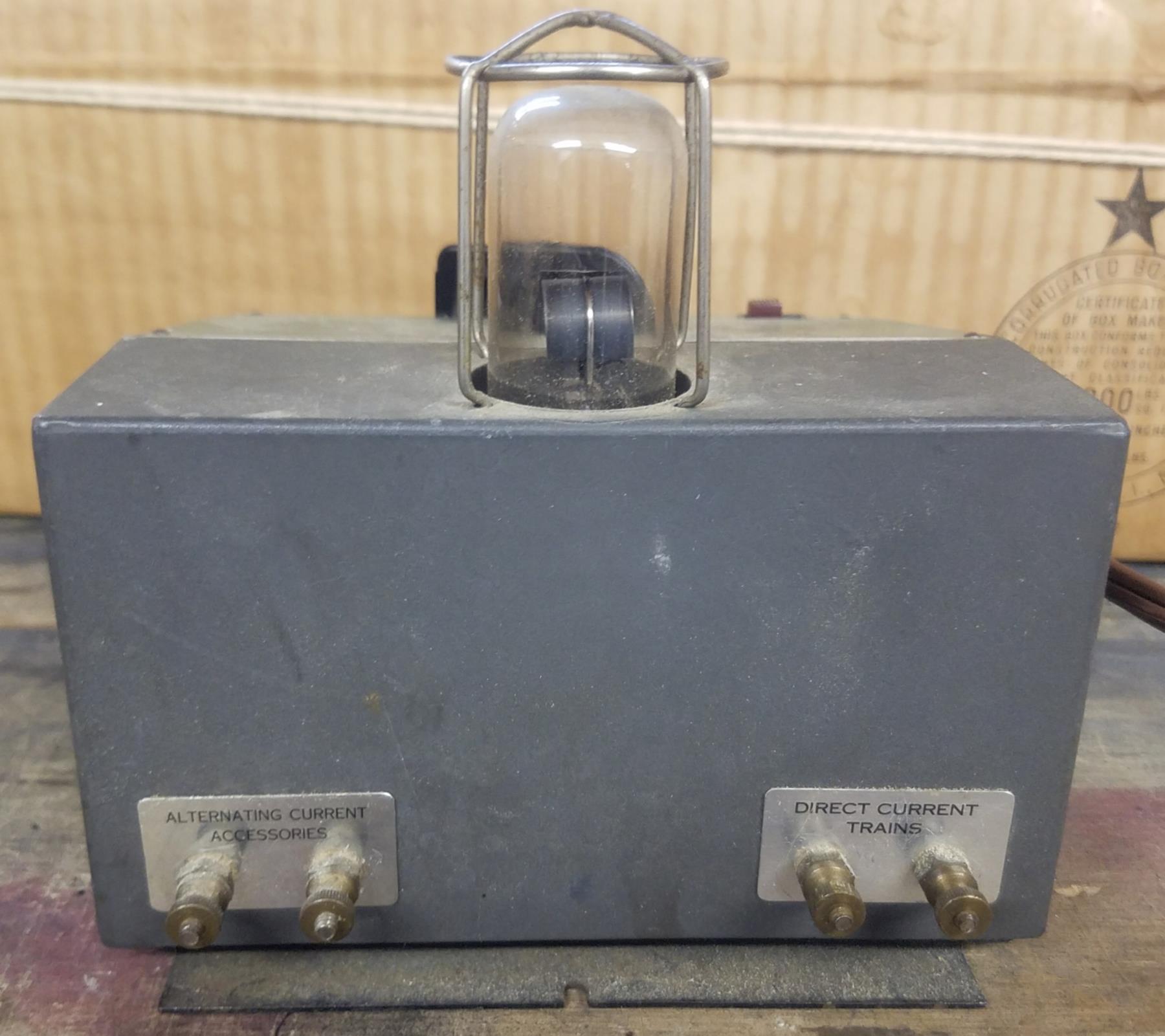

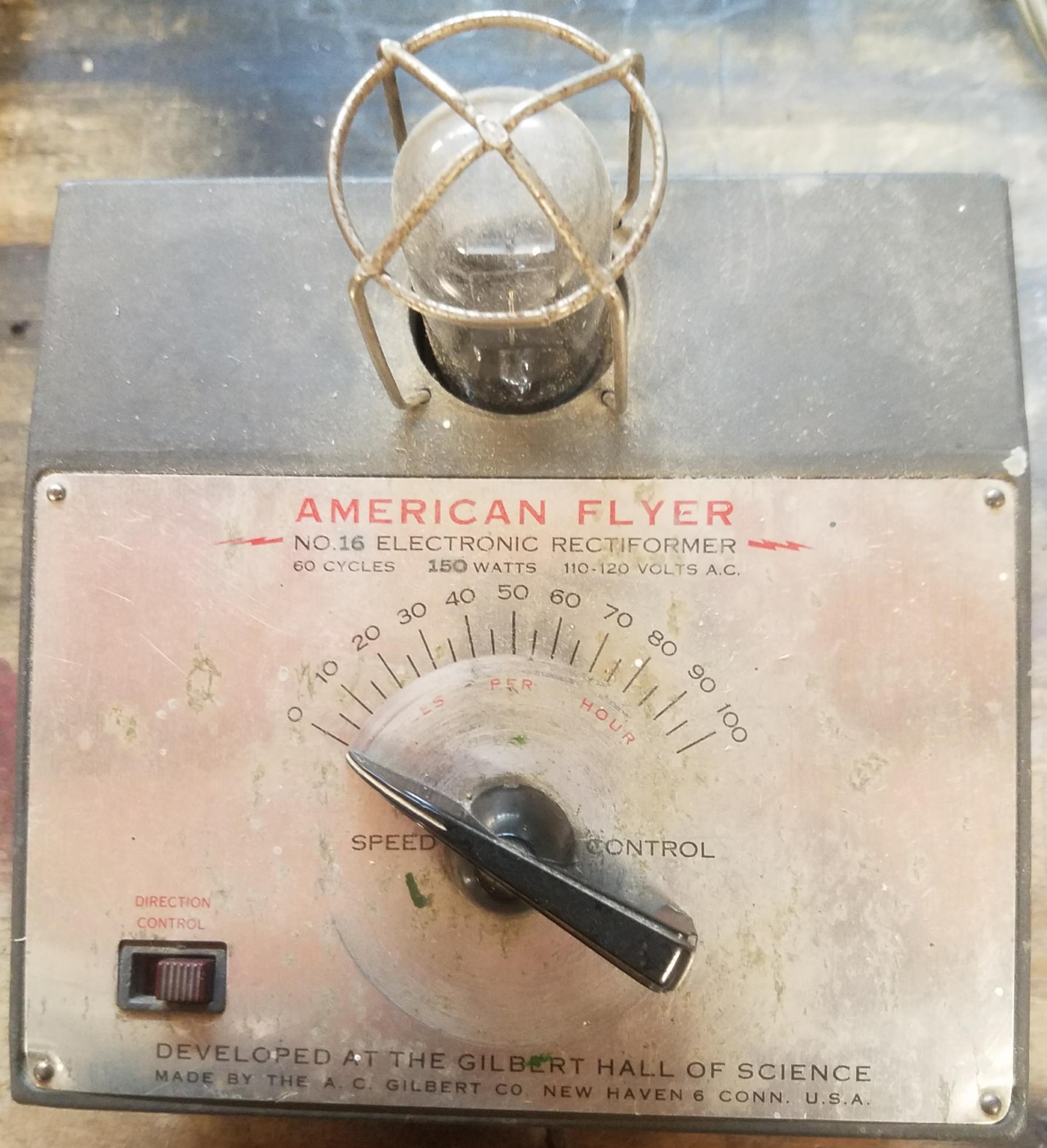

"Electronic Rectiformer". This unit combines a transformer and a rectifier, allowing it to control DC locomotives directly, without needing an AC transformer. It did, however, have an AC output for connecting accessories that require AC current.
(image copyright © Terry Sprankle; used by permission)
(image copyright © Terry Sprankle; used by permission)
Manufacturer:
A.C. Gilbert
Product Type:
transformer
Manufacturer ID:

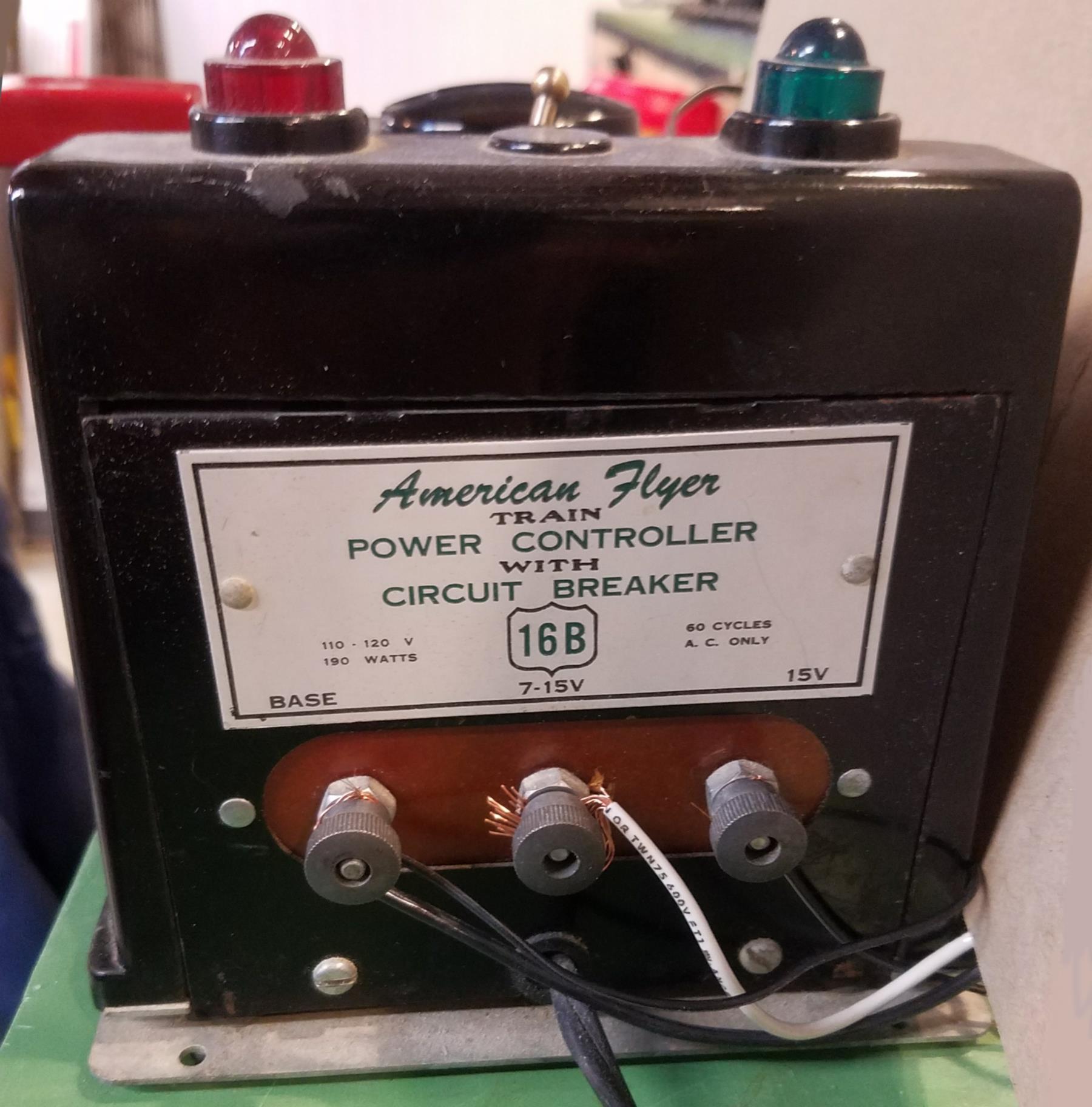

16B
Introduced:
1953
Electronics:
190W AC
Online Article:

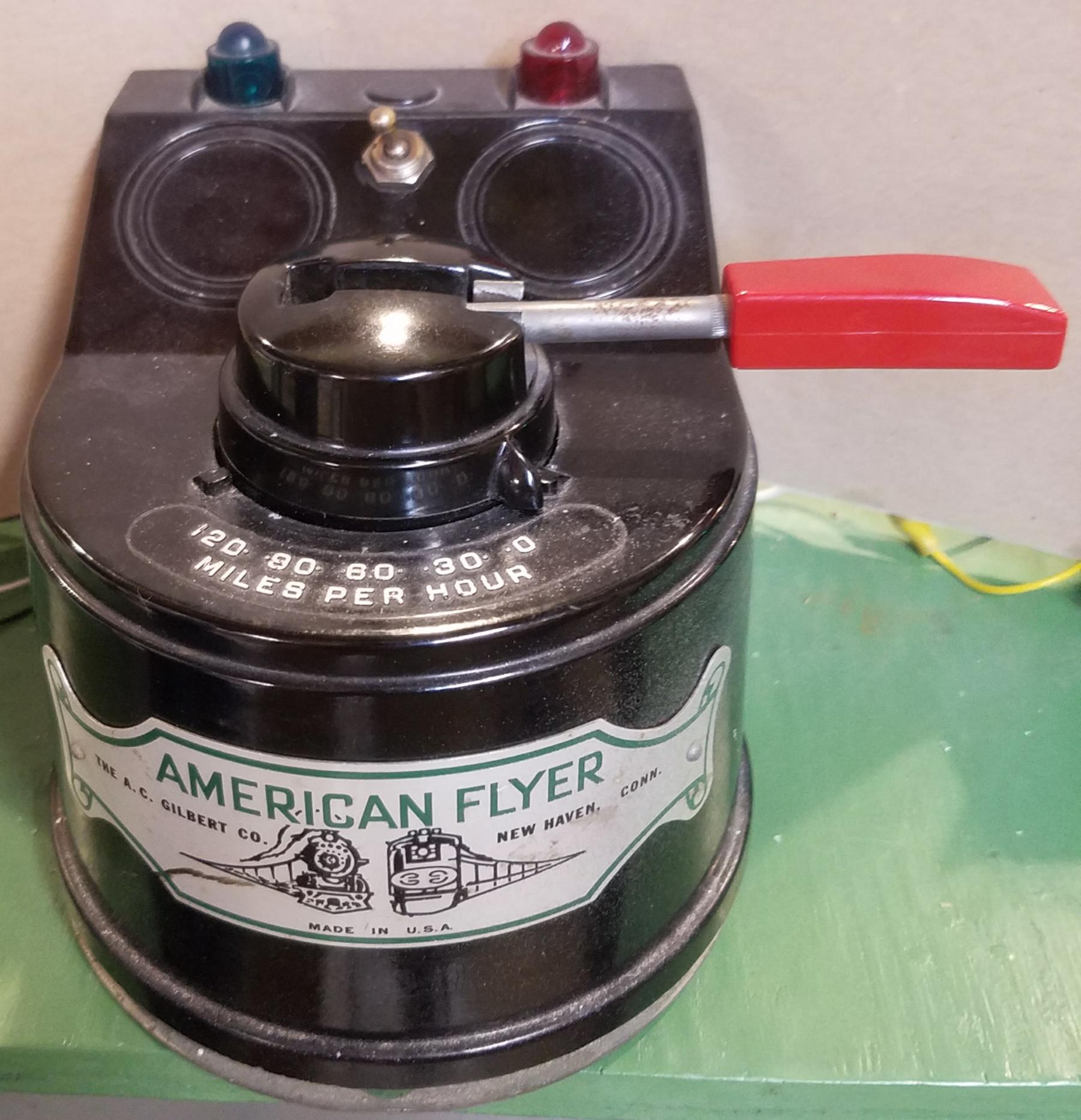

Notes:
Has built-in circuit breaker.
(image copyright © Terry Sprankle; used by permission)
(image copyright © Terry Sprankle; used by permission)
Manufacturer:
A.C. Gilbert
Product Type:
transformer
Manufacturer ID:
16C
Introduced:
1958
Electronics:
35W AC
Online Article:
Manufacturer:
A.C. Gilbert
Product Type:
transformer
Manufacturer ID:
17B
Introduced:
1952
Electronics:
190W AC
Online Article:
Notes:
With circuit breaker built-in.
Manufacturer:
A.C. Gilbert
Product Type:
transformer
Manufacturer ID:
18B
Introduced:
1953
Electronics:
190W AC
Online Article:
Notes:
Dual throttle. Single-core. With circuit breaker built-in.
Manufacturer:
A.C. Gilbert
Product Type:
transformer
Manufacturer ID:

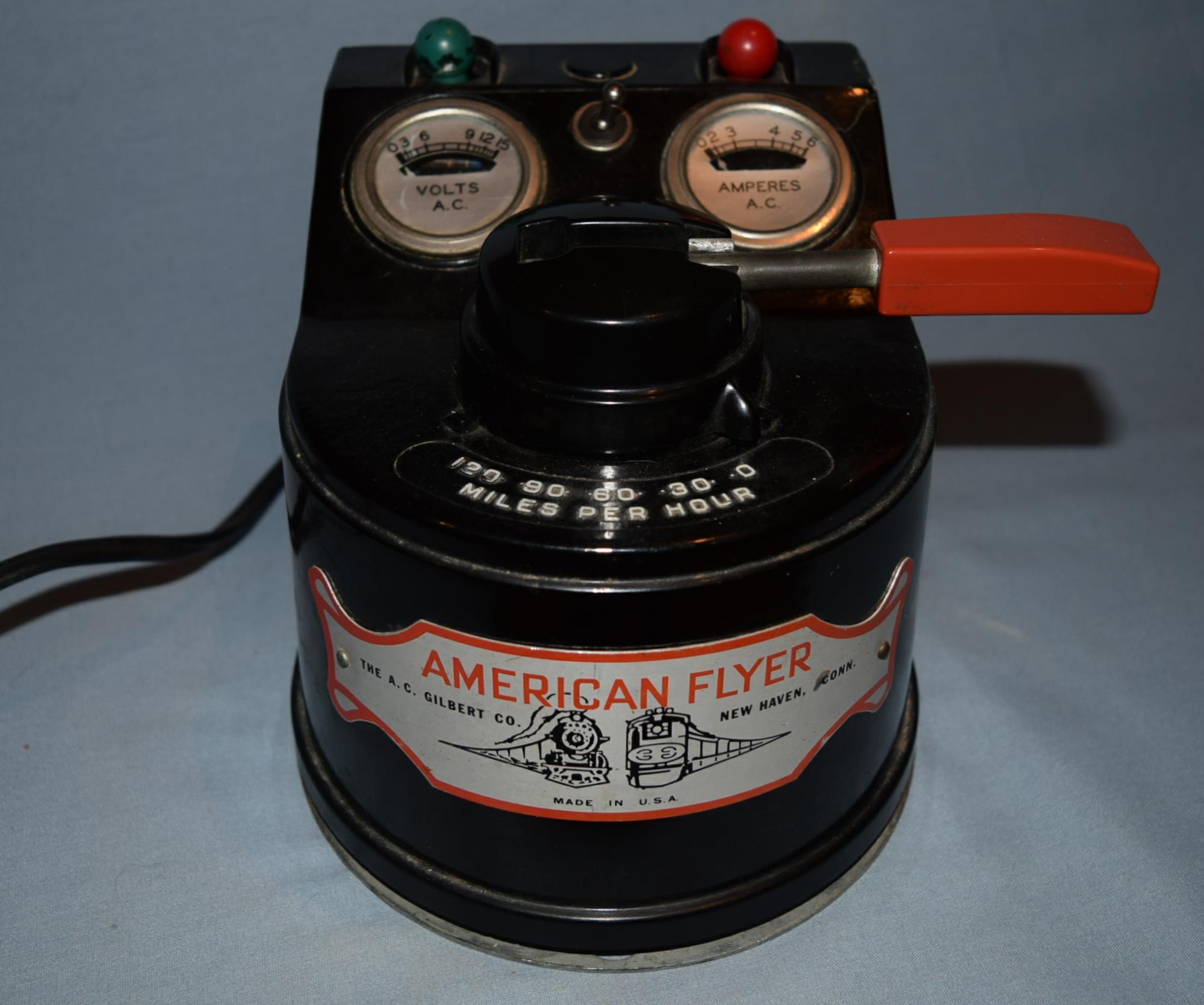

19B
Introduced:
1952
Electronics:
300W AC
Supplemental:
Online Article:
Notes:

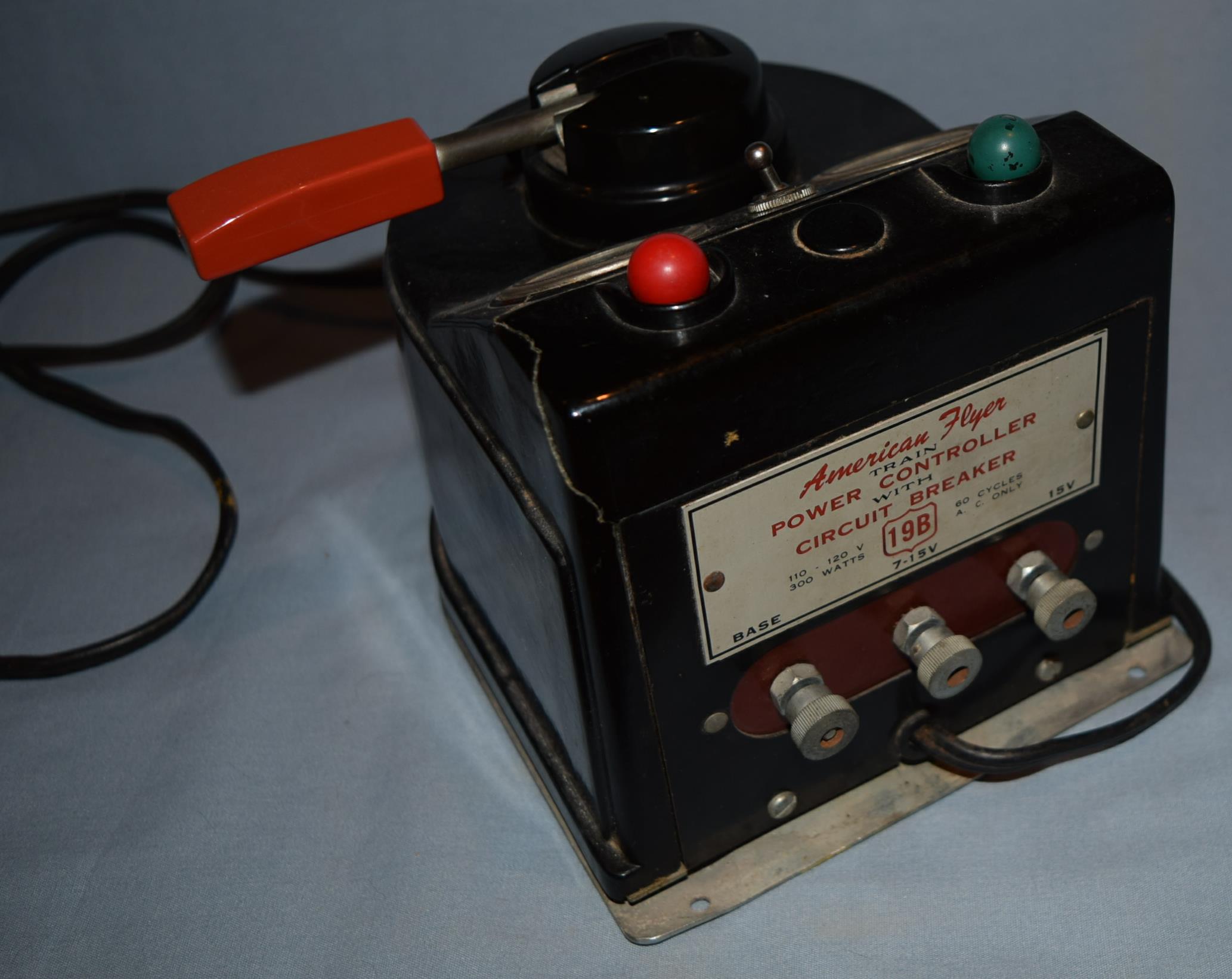

Single-throttle (dead-man type, i.e. it returns to the off position when let go). Includes volt- and ammeter built-in. Manufactured through 1955.
(image copyright © Ted Hamler; used by permission)
(image copyright © Ted Hamler; used by permission)
Manufacturer:
A.C. Gilbert
Product Type:
transformer
Manufacturer ID:
30B
Introduced:
1952
Electronics:
300W AC
Online Article:
Notes:

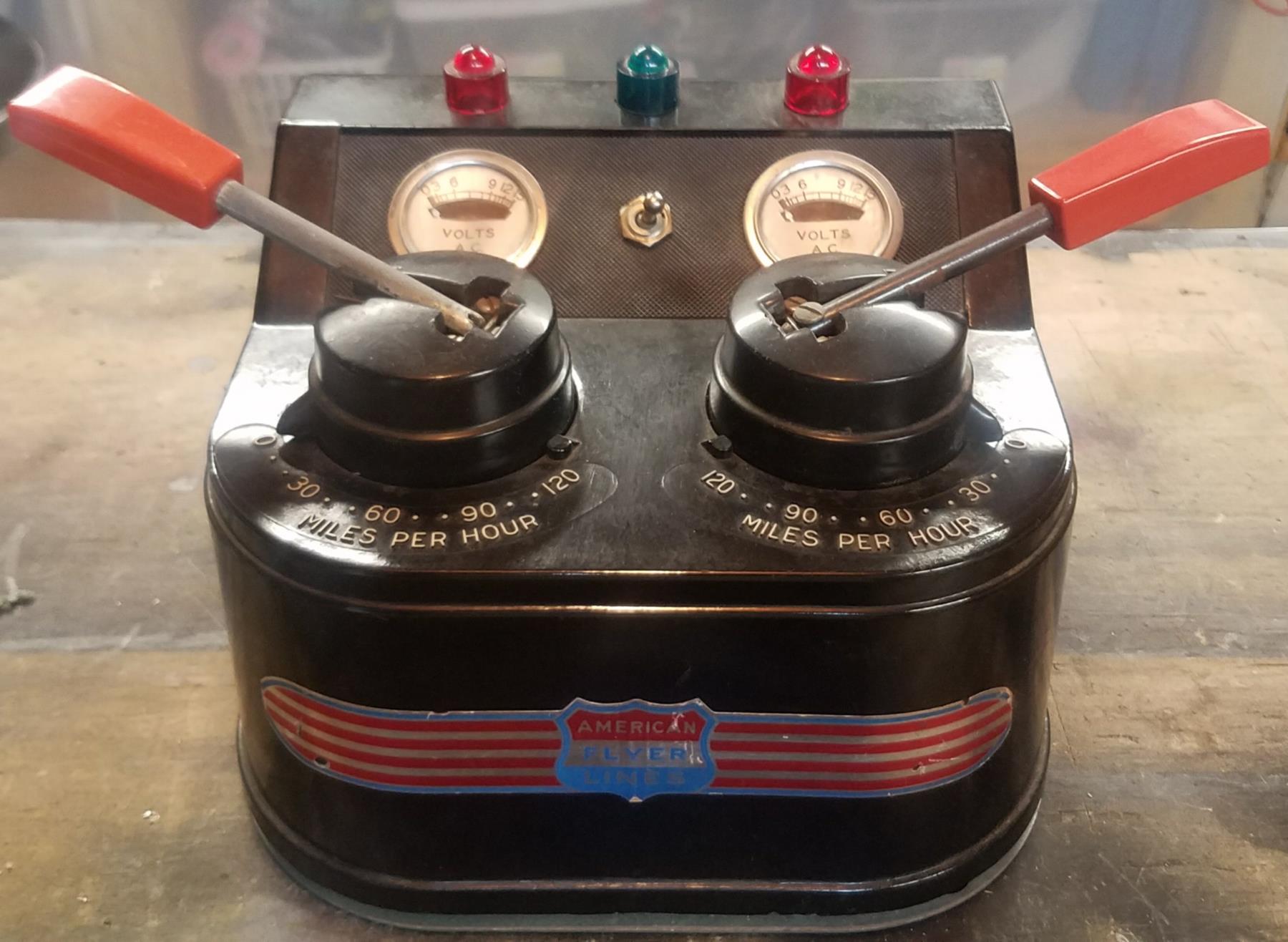

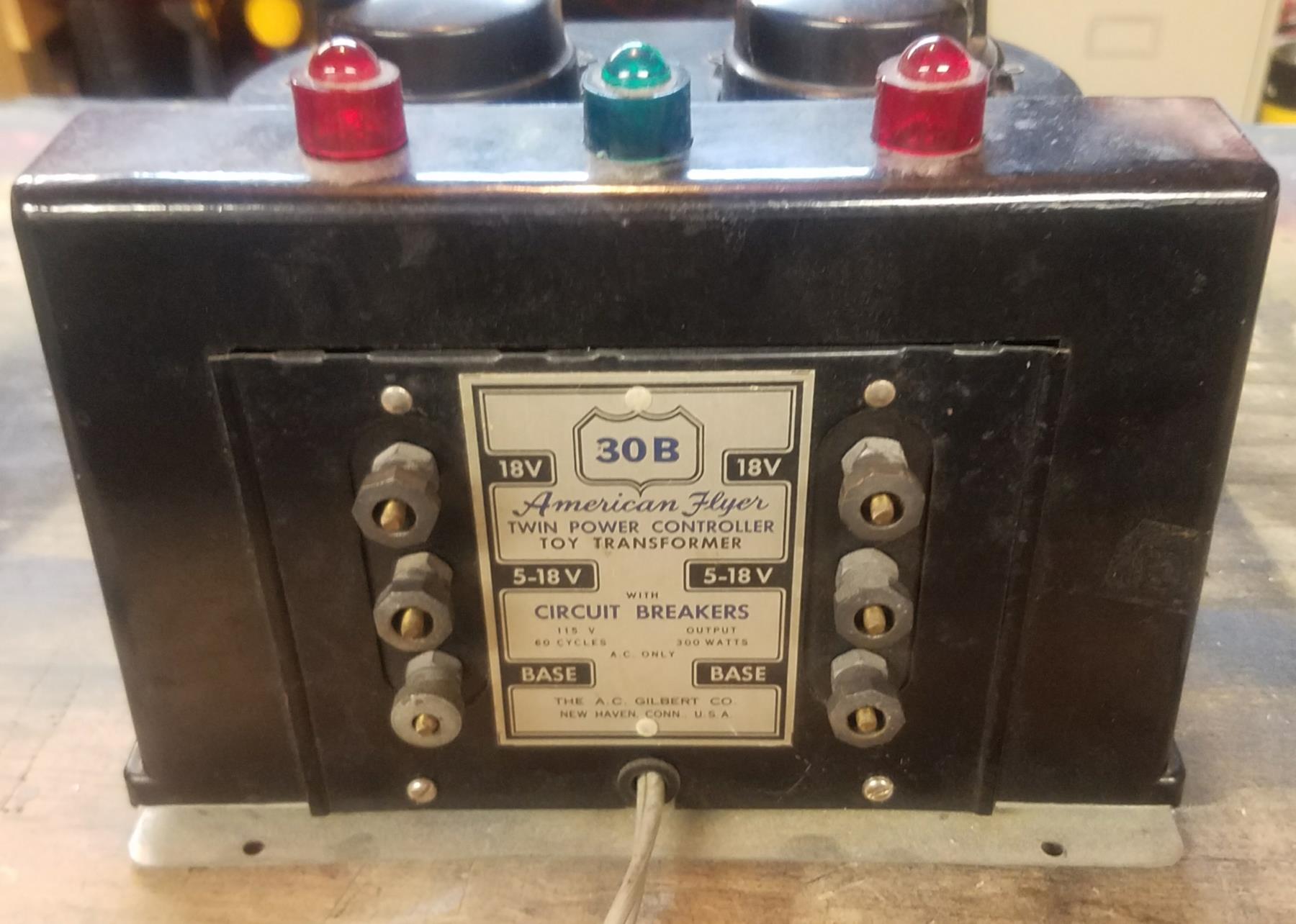

Dual throttle (dead-man type, i.e. they return to the "off" position when let go; operate in opposite direction). 18 volts AC. Single-core. With circuit breaker built-in.
(image copyright © Terry Sprankle; used by permission)
(image copyright © Terry Sprankle; used by permission)
Manufacturer:
A.C. Gilbert
Product Type:
transformer
Manufacturer ID:
22004
Introduced:
1959
Electronics:
40W AC
Online Article:
Manufacturer:
A.C. Gilbert
Product Type:
transformer
Manufacturer ID:

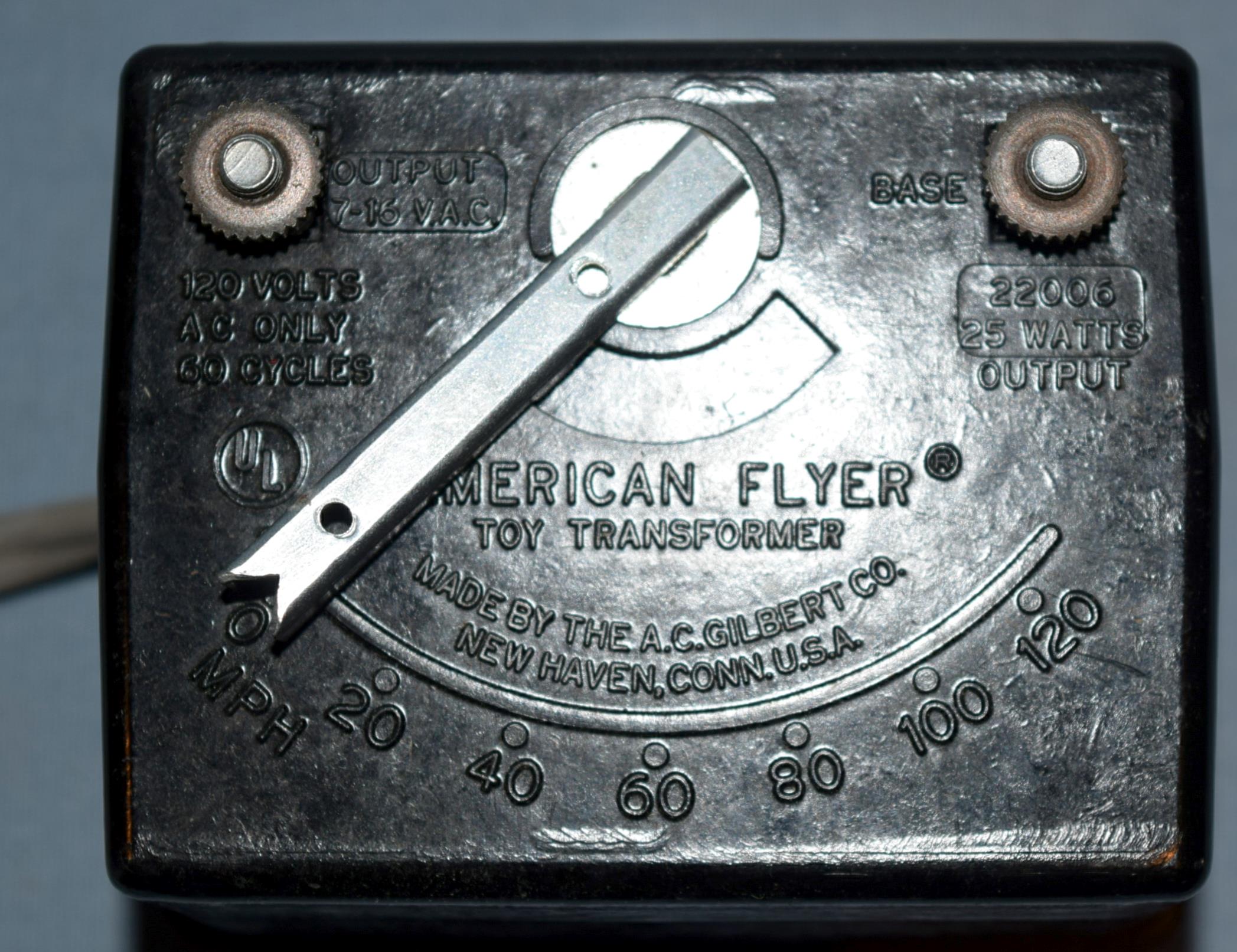

22006
Introduced:
1963
Electronics:
25W AC
Online Article:
Notes:
Produced in 1963 only.
(image copyright © Ted Hamler; used by permission)
Manufacturer:
A.C. Gilbert
Product Type:
transformer
Manufacturer ID:

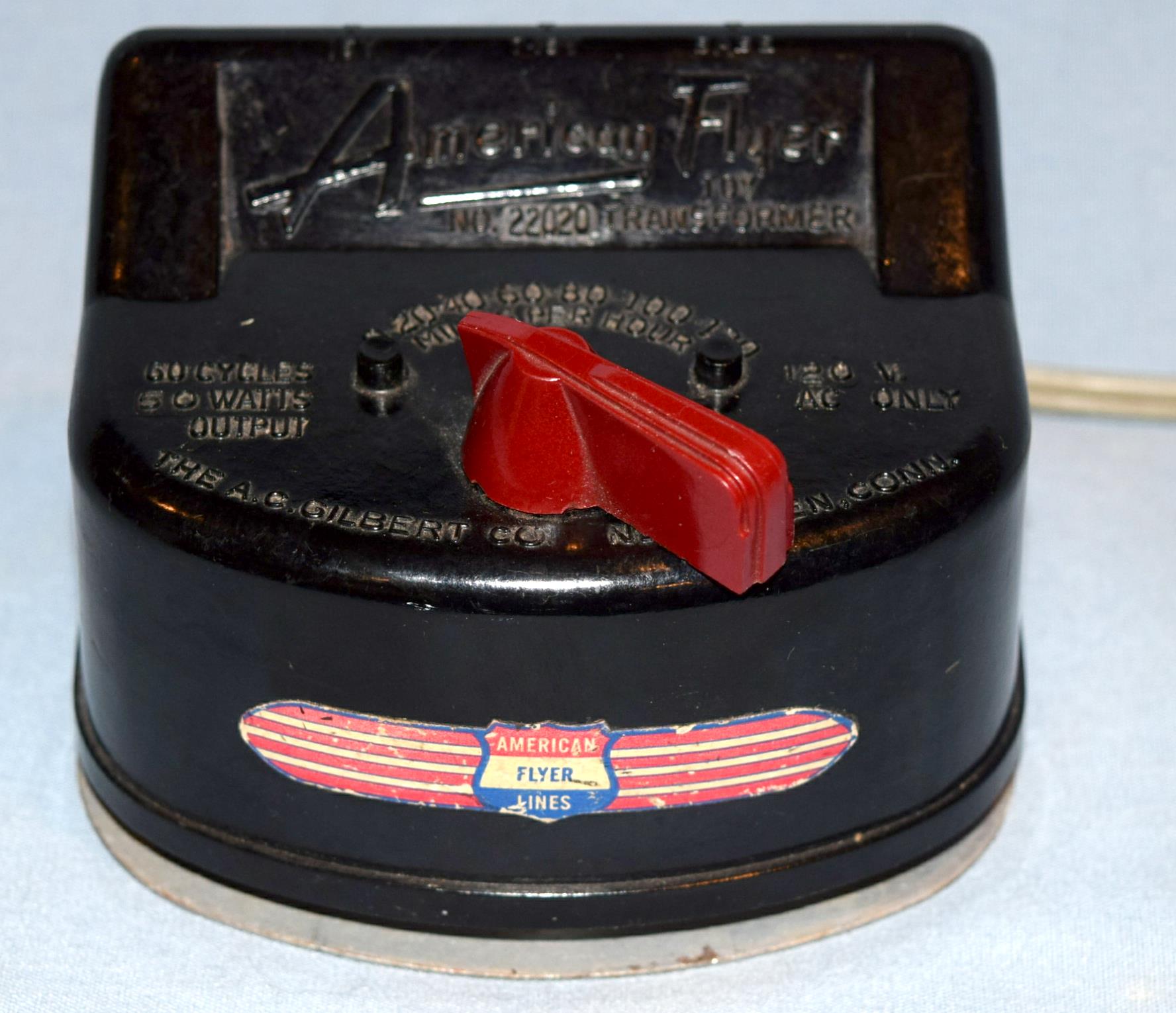

22020
Introduced:
1957
Electronics:
50W AC
Online Article:
Notes:
Produced through 1964.
(image copyright © Ted Hamler; used by permission)
Manufacturer:
A.C. Gilbert
Product Type:
transformer
Manufacturer ID:
22030
Introduced:
1957
Electronics:
100W AC
Online Article:
Notes:
With circuit breaker built-in.
Manufacturer:
A.C. Gilbert
Product Type:
transformer
Manufacturer ID:
22033
Introduced:
1965
Electronics:
25W AC
Online Article:
Manufacturer:
A.C. Gilbert
Product Type:
transformer
Manufacturer ID:
22034
Introduced:
1965
Electronics:
50W AC
Online Article:
Notes:

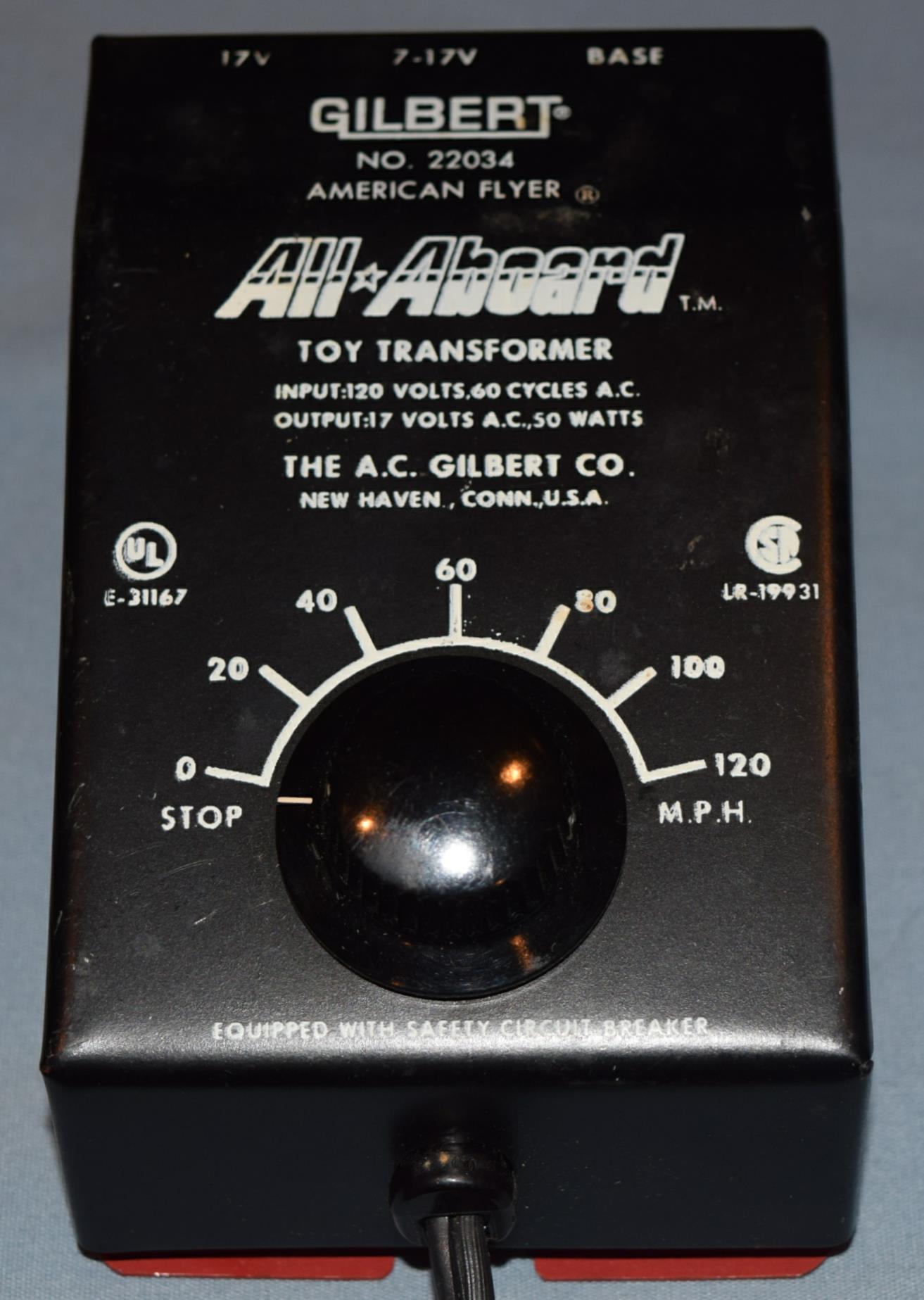

Sold in 1965 only.
(image copyright © Ted Hamler; used by permission)
Manufacturer:
A.C. Gilbert
Product Type:
transformer

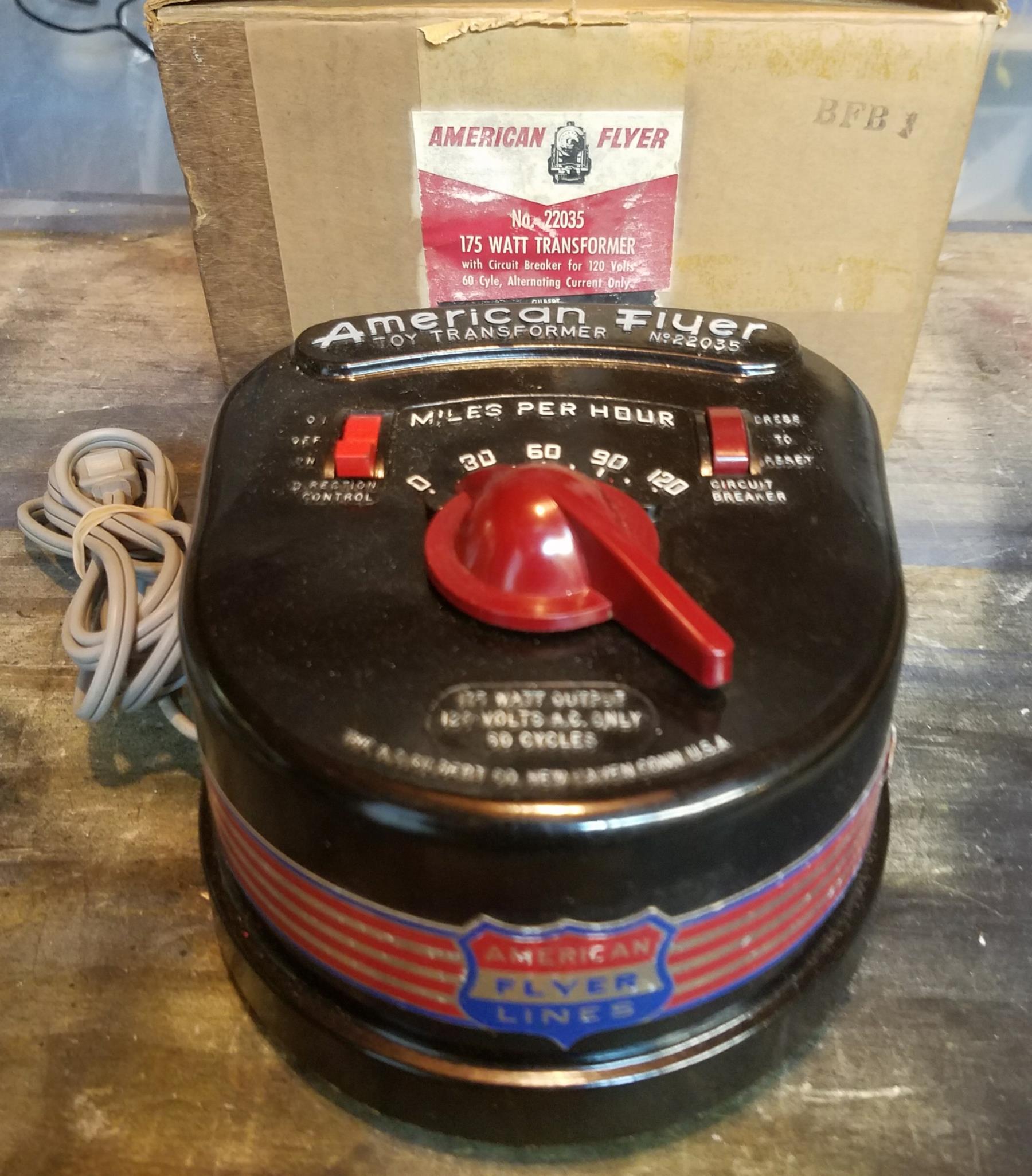

Manufacturer ID:
22035
Introduced:
1957
Electronics:
175W AC
Online Article:
Notes:
Has built-in circuit breaker.
(image copyright © Terry Sprankle; used by permission)
(image copyright © Terry Sprankle; used by permission)
Manufacturer:
A.C. Gilbert
Product Type:
transformer
Manufacturer ID:
22040
Introduced:
1957
Electronics:
110W AC
Online Article:
Notes:
With circuit breaker built-in.
Manufacturer:
A.C. Gilbert
Product Type:
transformer
Manufacturer ID:
22050
Introduced:
1957
Electronics:
175W AC
Online Article:
Notes:
With circuit breaker built-in.
Manufacturer:
A.C. Gilbert
Product Type:
transformer
Manufacturer ID:
22060
Introduced:
1958
Electronics:
175W AC
Online Article:
Notes:
With circuit breaker built-in.
Manufacturer:
A.C. Gilbert
Product Type:
transformer
Manufacturer ID:
22080
Introduced:
1957
Electronics:
300W AC
Online Article:
Notes:
Dual-core (150W each). Dual throttle. With circuit breaker, and volt- and ammeter built-in.
Manufacturer:
A.C. Gilbert
Product Type:
transformer
Manufacturer ID:
22090
Introduced:
1959
Electronics:
350W AC
Online Article:
Online Article:
Notes:
Dual throttle. Dual-core (175W each). With circuit breaker, and volt- and ammeter built-in.
