S-Helper Service Track | #3 Turnout | Electrical
Manufacturer:
S-Helper Service
Product Category:
Track
Model Name:
#3 Turnout
Notes Type:
Electrical
Title:
Wiring the Track
Notes:
This article was copied from the Web Archive web site, which had captured this article's text and photos in March 2003 from the S-Helper Service's web site. It has been reproduced here, because it is still useful, and it is much easier to find here than on the Web Archive site.
Wiring switches is accomplished by plugging the controller wire right into the side of the switch. If you want to wire them this way no modification is necessary.
If you want to hide the controller wiring then you need to remove the bottom switch plate and move the controller plug to the inner position. Plug in the controller wire, reassemble the bottom plate, and then install the small ballast cover.

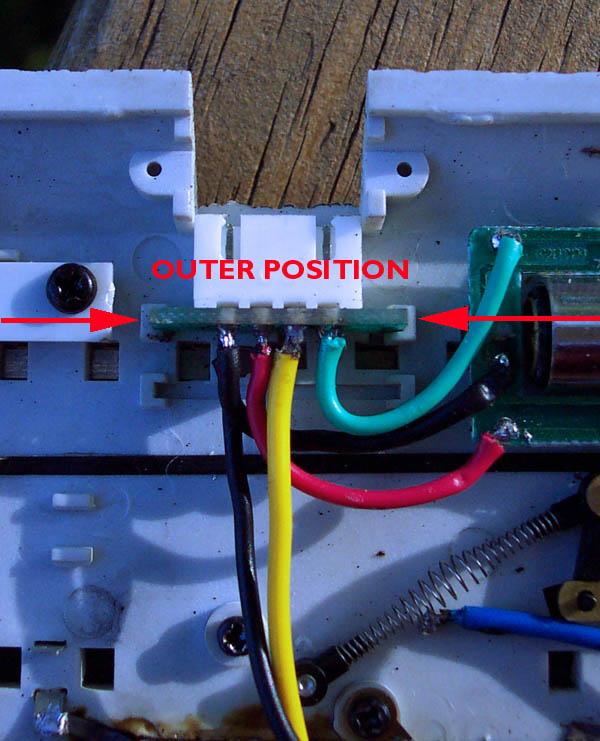

The outer position, requiring no modification.

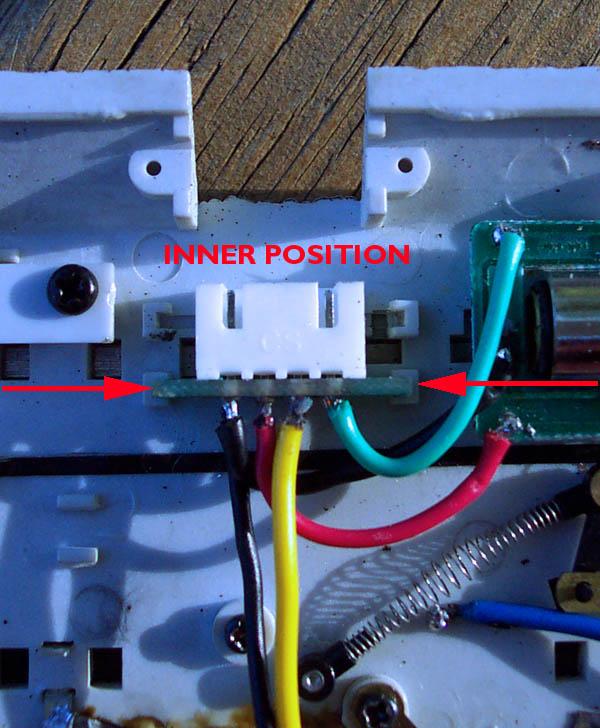

The plug has been moved to the inner position. Note the two rows of slots. Simply lift it out of the outer-most slot and into the inner slot.
