A.C. Gilbert Chicago & North Western (CNW) General Service Flat Cars

Model Manufacturer Info

Manufacturer:

A.C. Gilbert

Manufacturer ID:

628

Prototype Info

Style:

general service

Year/Era:

1927

Length:

46'

Road Name:

Chicago & North Western (CNW)

Model Info

Gauge:

Introduced:

1946

Road Number(s):

42597

Product Type:

plastic or metal or pressed wood

Finish:

painted and lettered

Wheels:

hi-rail

Couplers:

Online Article:

Prototype Photos, Information

Online Article:

Has More Photos

Supplemental Part:

Replacement Brake Wheels

Supplemental Part:

Flat Car Stakes

Notes:

The #628 was produced from 1946 through 1953 in nine variations. The variations are broken down into three major groupings.
The first grouping consisted of two cars produced in 1946 with plastic bodies. The first has a gray body with link couplers that have thin shanks. The second is identical except that it has a white body.
The second grouping has six variations, all of which have die-cast bodies. Four of the six variations in this group were produced in 1948. One variation was produced from 1949 through 1953. The last has metallic blue body that was produced in 1953. The last variation group consists of one variation produced in 1952. According to Greenberg the 1952 variations of this car and the #636, #643 and #928 all have "pressed wood" chassis. It is believed that Gilbert used both Bakelite and/or "pressed wood" on these models in 1952.

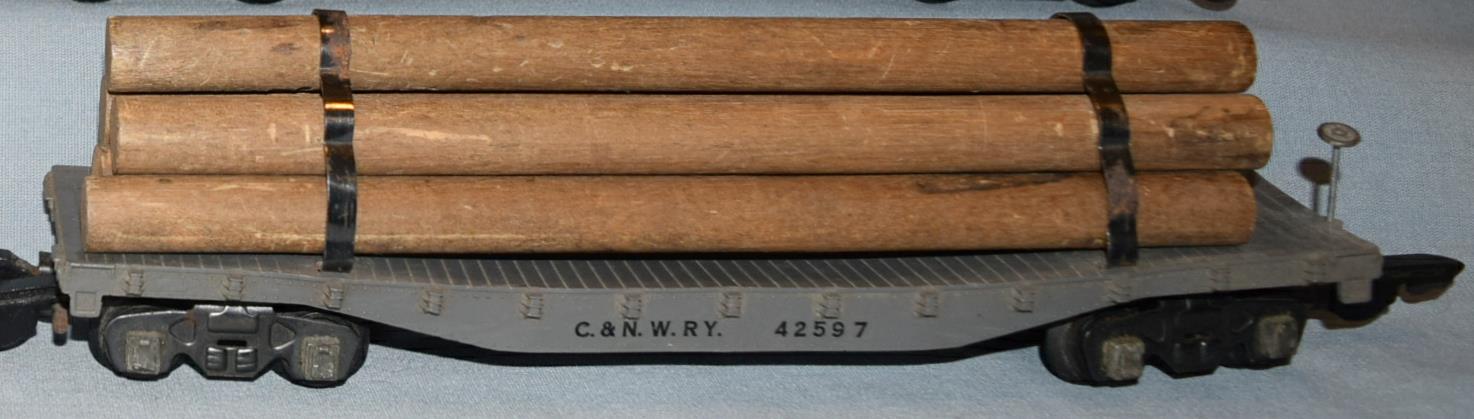

One of the 1946 plastic body variations.

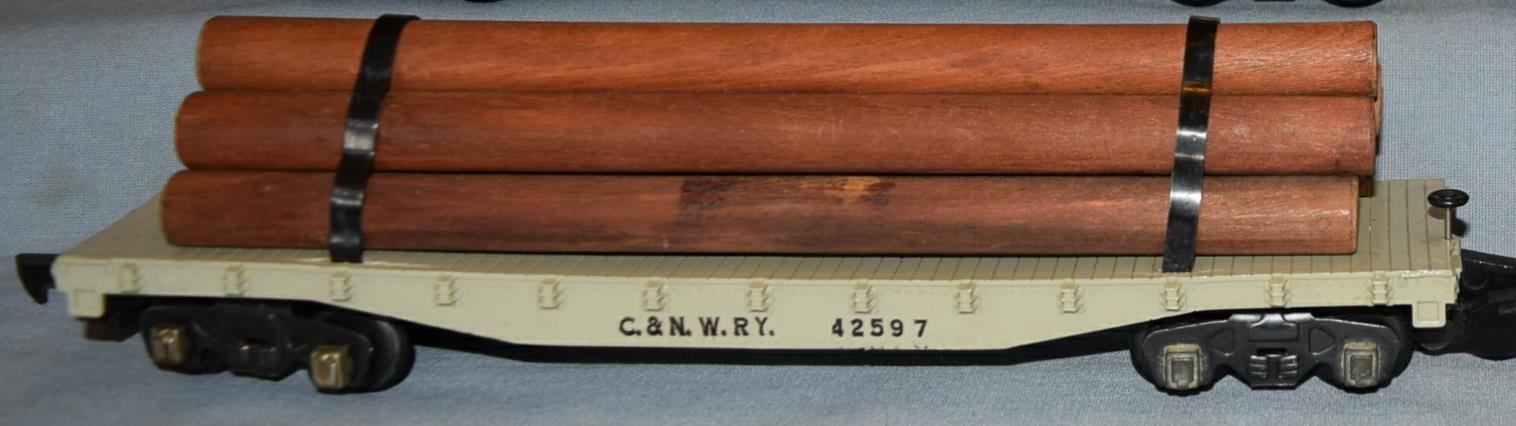

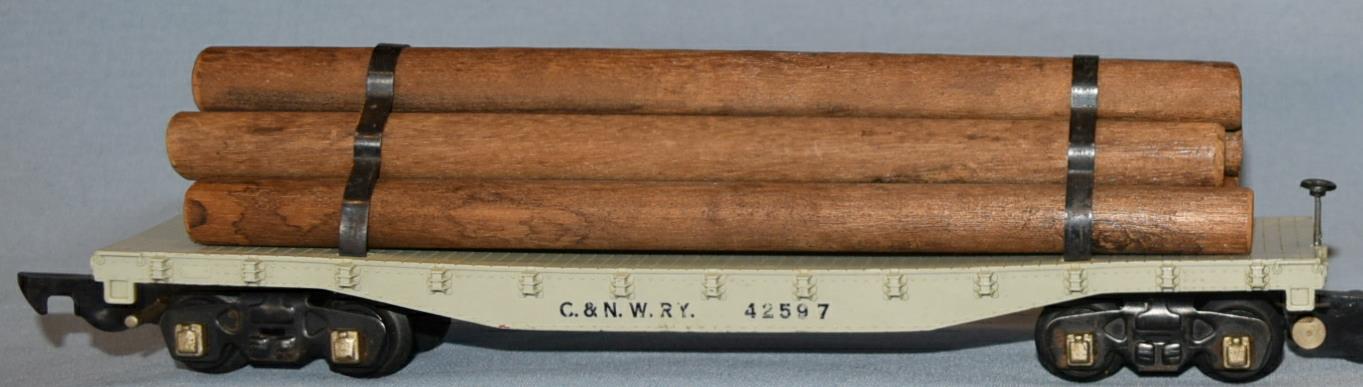

The 1947 plastic body version.

The 1952 pressed wood version. Note the larger lettering used, since there are no stake pockets on this version.

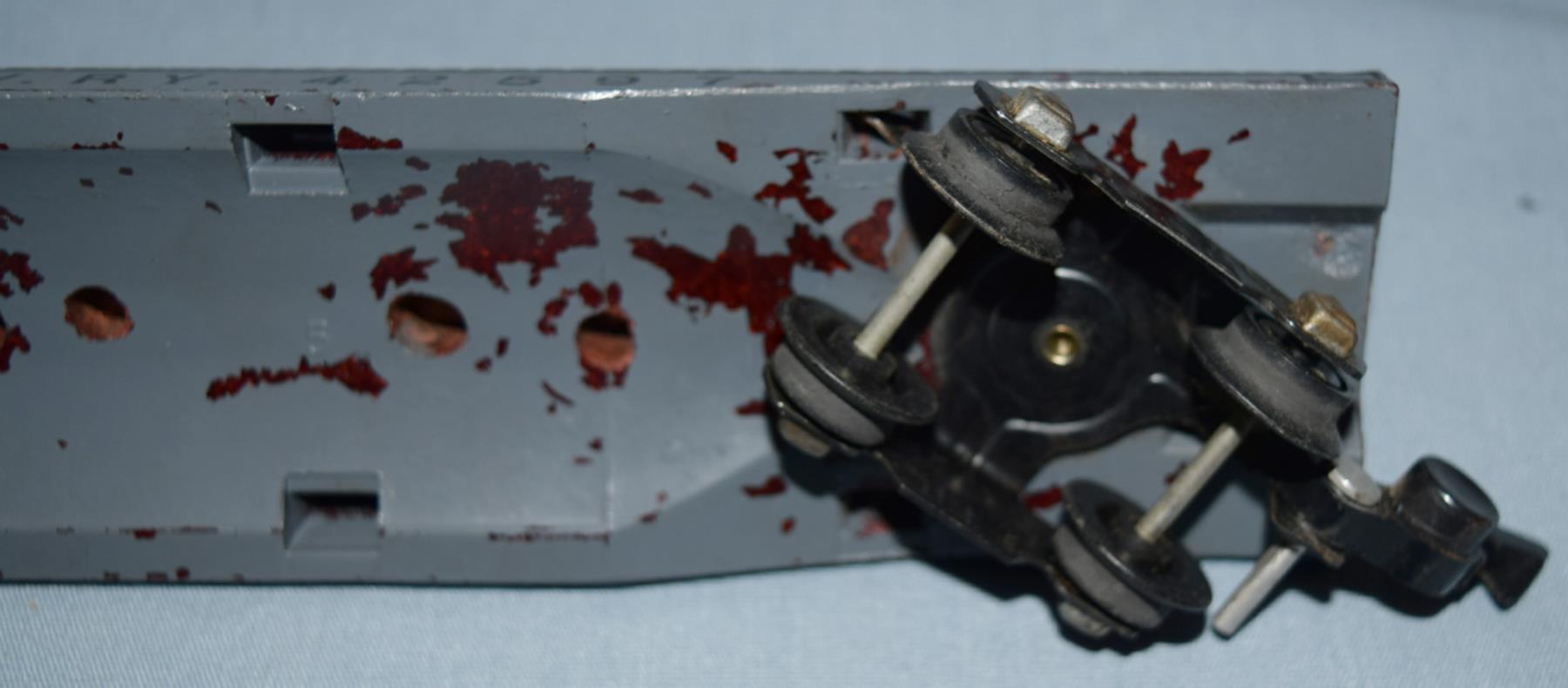

A view of the underside of the car.

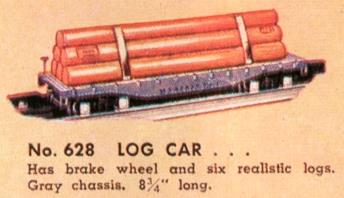

A scan from the 1946 catalog.

A scan from the 1953 catalog, which shows the pressed-wood version.
