Standard Railway Castings Company Canadian National Railway (CN) Steel-sheathed, Single-door Box Cars

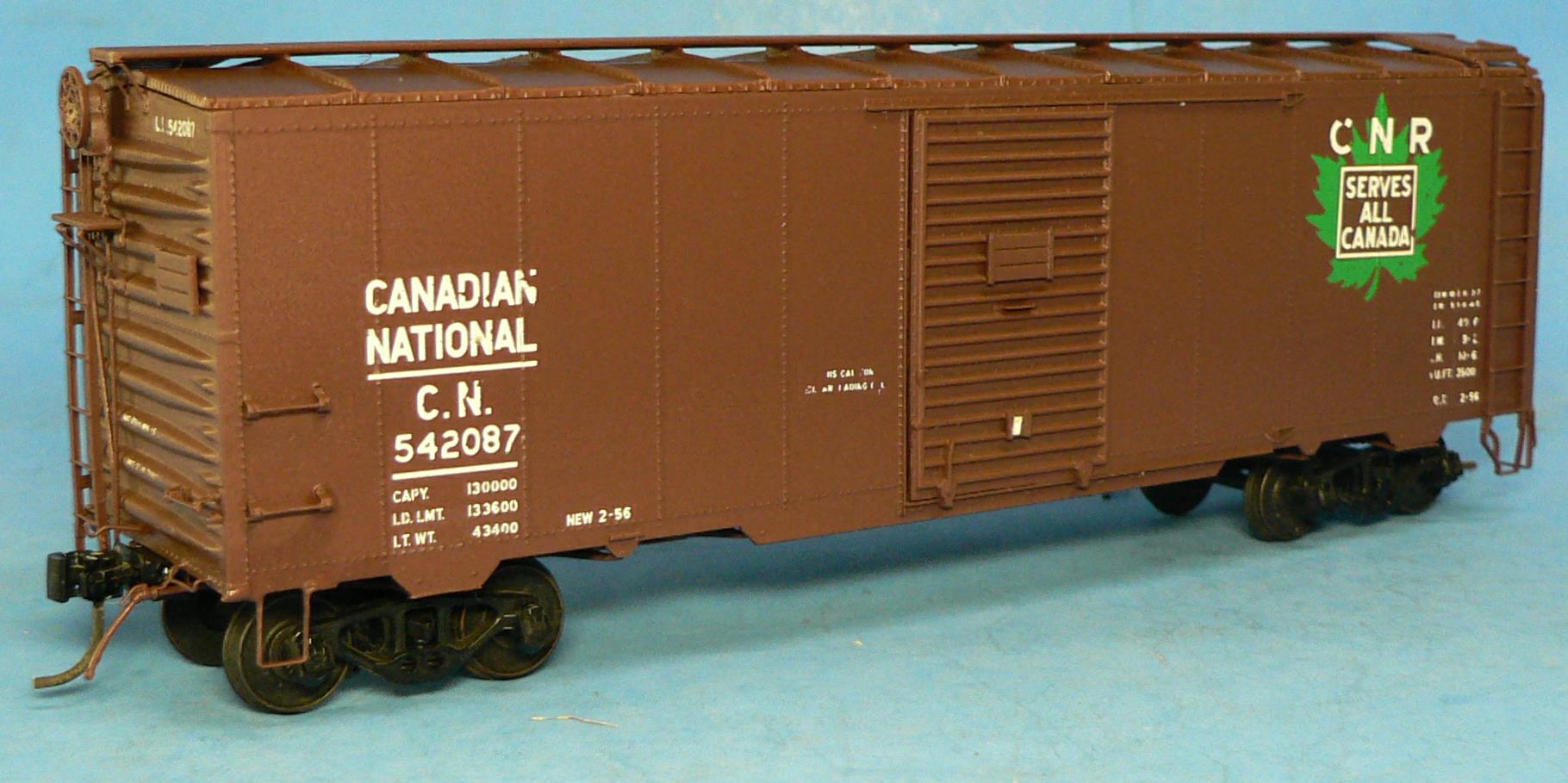

Ed's model includes National Type B-1 trucks, S-corner 4-5 Dreadnaught ends, and the Green, Level leaf decals that were used on the prototype from 1954 until 1991. In addition, the model has some weight added inside the body, four new ladder castings with sill steps at bottom (with two steps bent from flat wire to be cemented on), end-sill grab irons formed from wire, and cut levers added. Finally, Kadee #802 S-scale couplers with plugs in the centering springs were used to cut down on slack action in the trains. The air brake reservoir was turned crossways and all plastic piping replaced with wire after drilling holes for them. A brake slack adjuster plate was added. The undecorated car was painted with Scalecoat II S-2018 "Boxcar Red". The lettering supplied was C-D-S S-1 which Ed transferred to decal paper and put on the usual way. A coat of Dullcote finished it, leaving the trucks black. The final step Ed did was to add the destination cards on the door tack boards.
